Omron SYSDRIVE 3G3FV User Manual

9-29

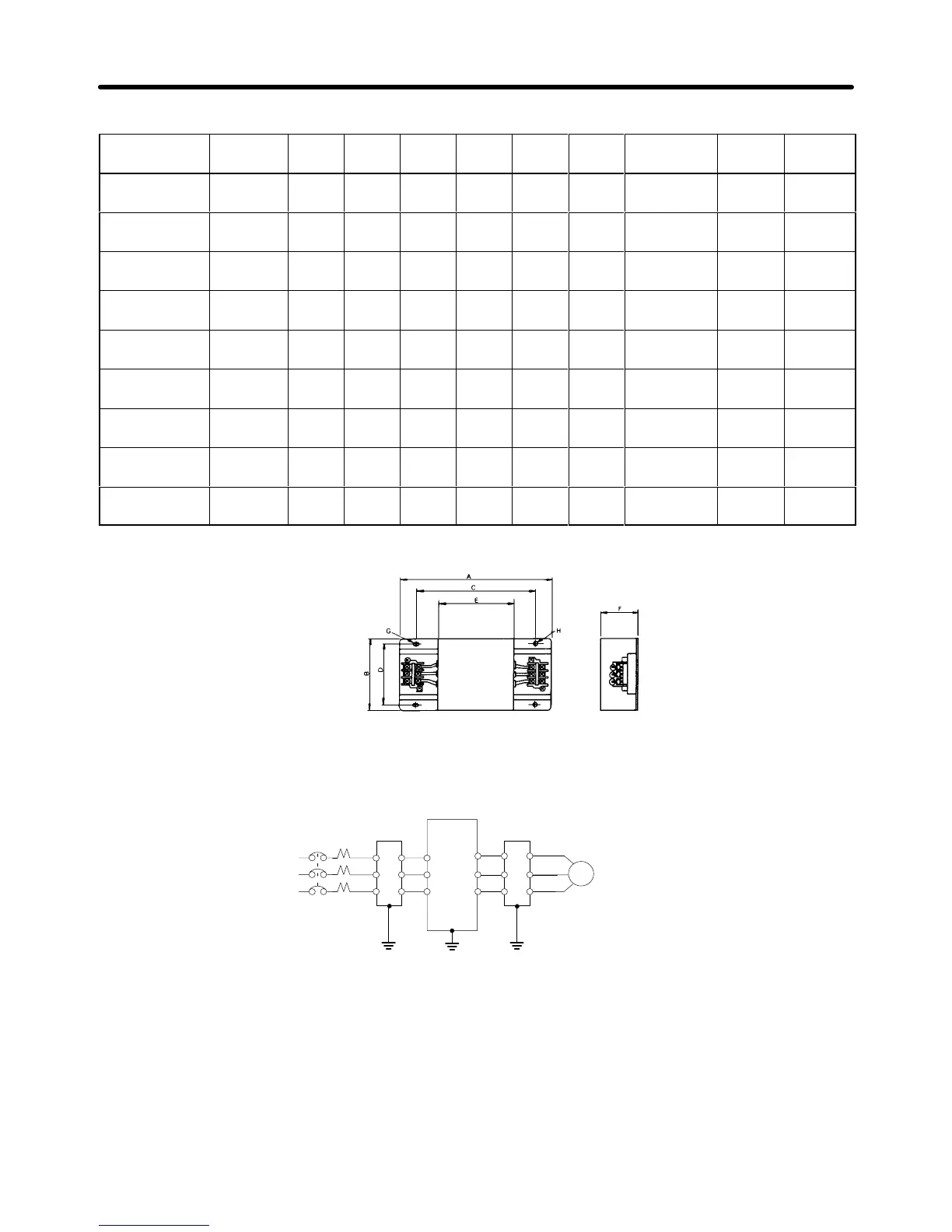

D External Dimensions (mm)
Model
(3G3IV-)
Terminal A B C D E F G H Weight
(kg)
PLF310KA TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5 dia. 4.5 dia. 0.5
PLF320KA TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5 dia. 4.5 dia. 0.6
PLF350KA TE-K22
M6
260 180 180 160 120 65 7 x 4.5 dia. 4.5 dia. 2.0
PLF310KB TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5 dia. 4.5 dia. 0.5
PLF320KB TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5 dia. 4.5 dia. 0.6
PLF335KB TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5 dia. 4.5 dia. 0.8
PLF345KB TE-K22
M6
260 180 180 160 120 65 7 x 4.5 dia. 4.5 dia. 2.0
PLF375KB TE-K22
M6
540 320 480 300 340 240 9 x 6.5 dia. 6.5 dia. 12.0
PLF3110KB TE-K60
M8
540 340 480 300 340 240 9 x 6.5 dia. 6.5 dia. 19.5
Dimensions
D Noise Filter Connection Example
Input
Noise
Filter
Output
Noise
Filter
Three-phase
inductive motor
L1
L2
L3
IM
SYSDRIVE
IN
IN
1
2
3
4
5
6
1
2
3
4
5
6
MCCB
Specifications Chapter 9
