Omron SYSDRIVE 3G3FV

2-14
2-2-2 Terminals

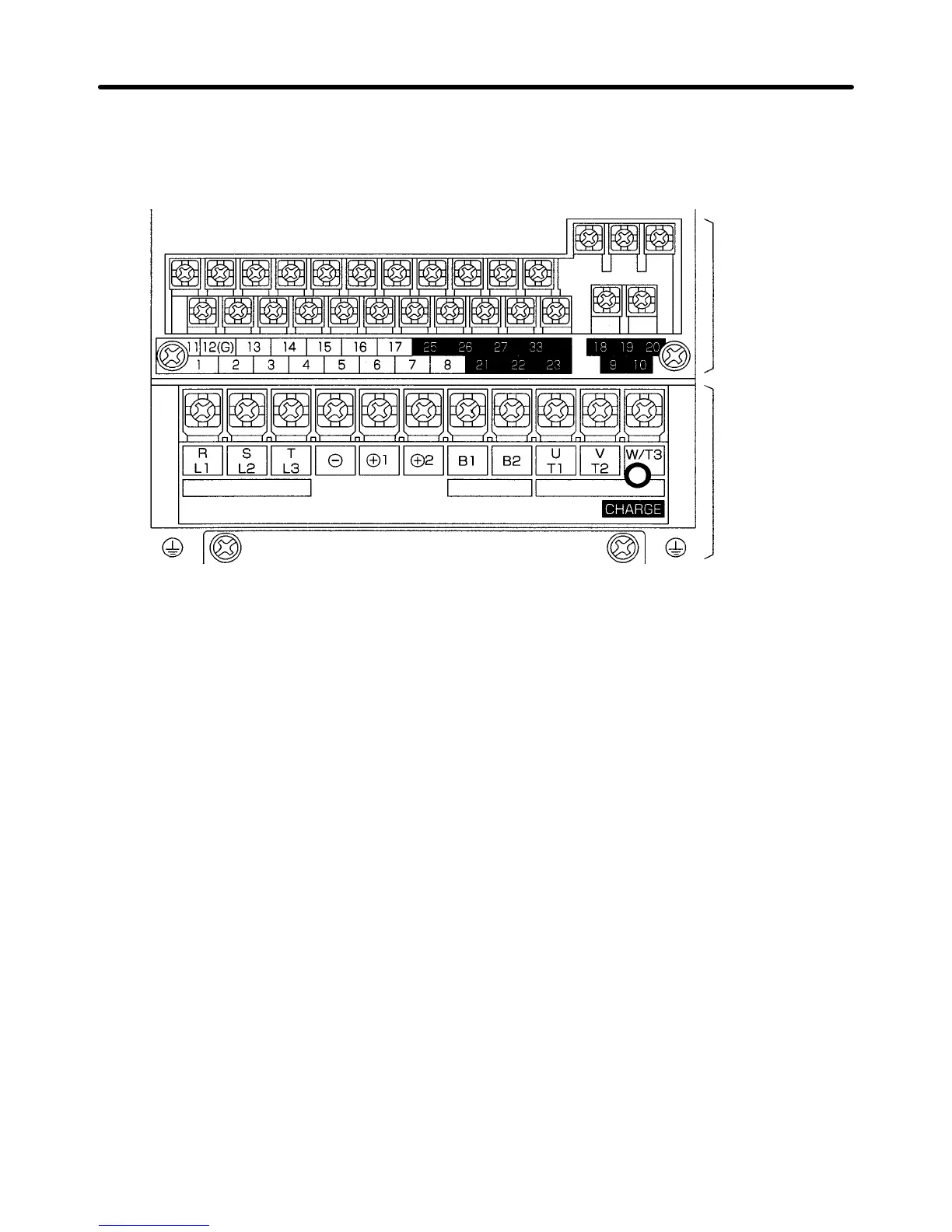

H Terminal Block Configuration (200-V Class with 0.4-kW Output)
Power input
Braking Resistor
Motor output
Control
circuit
terminals
Main circuit
terminals
Installation Chapter 2
