Omron SYSDRIVE 3G3MV SERIES

10-21
H Function Group 3 (n080 through n0119)
Para
me-
ter
No.
Reg-
ister
No.
(Hex)
Name Description Set-
ting
range
Unit
of
set-
ting
Defa
ult
set-
ting
Chan-
ges dur-
ing
opera-
tion
Ref-
er-
ence
page
n080 0150 Carrier fre-
quency
selection
Used to set the carrier frequency.
* The default setting does not need any chan-
ges in normal operation.
* Refer to 6-4 Setting the Carrier Frequency
for details.
1 to 4,
7 to 9
1 Varies
with
the
capac-
ity.
No 6-23
n081 0151 Momentary
power
interruption
compensa-
tion
Used to specify the processing that is per-
formed when a momentary power interruption
occurs.
0: Inverter stops operating
1: Inverter continues operating if power inter-
ruption is 0.5 s or less.
2: Inverter restarts when power is restored.
5 to 100:Power interruption recovery timer
(Operation will continue after set time
times 0.1 s.)
0, 1,
2, 5 to
100
1 0 No 6-40
n082 0152 Number of
fault retries
Used set the number of times that reset and
restart are automatically attempted for the
Inverter when the Inverter has an overvoltage
fault or overcurrent fault.
0 to
10
1 0 No 6-41
n083 0153 Jump fre-
quency 1

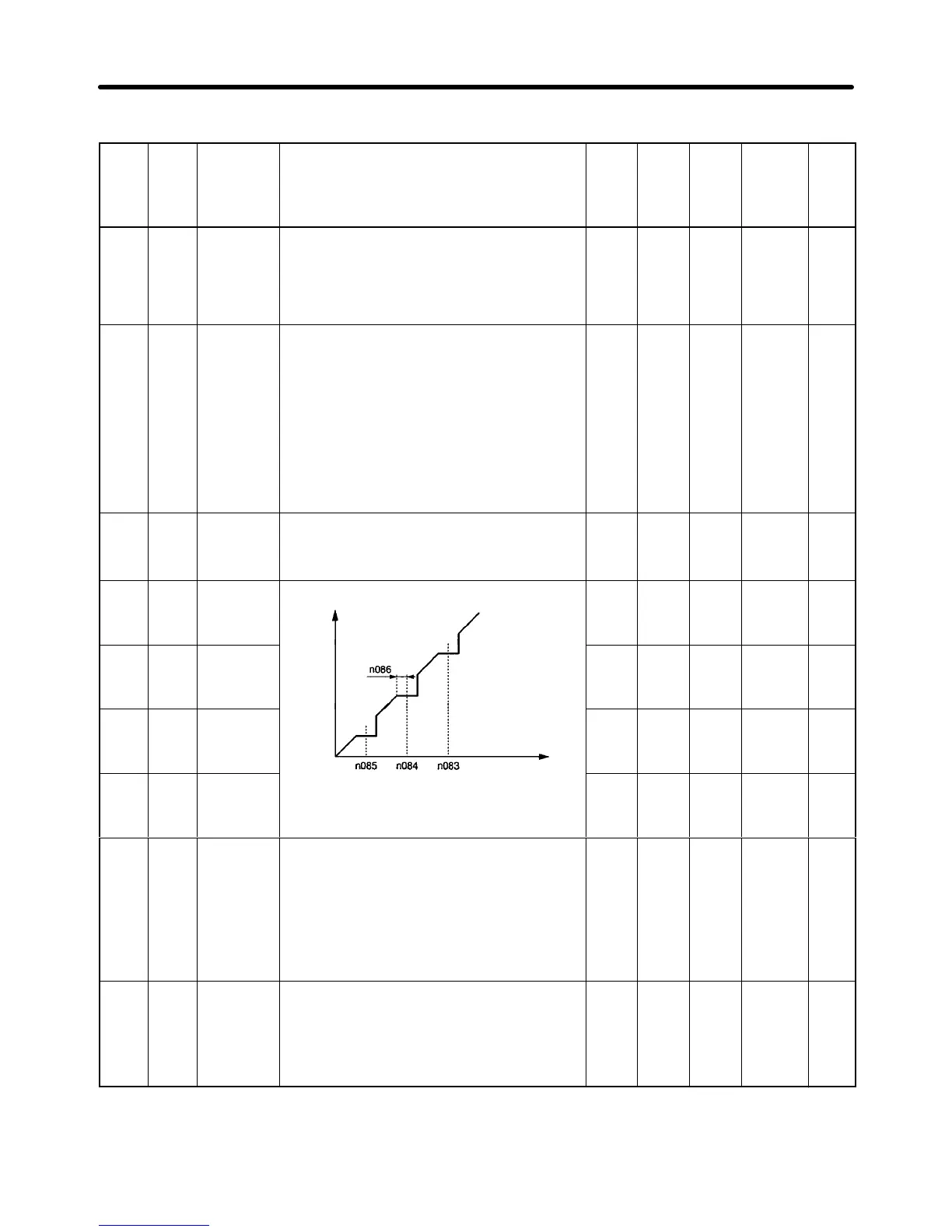

Used to set the frequency jump function.
Output
frequency
0.00
to
400.0
0.01
Hz
0.00 No 6-42
n084 0154 Jump fre-
quency 2
0.00
to
400.0
0.01
Hz
0.00 No 6-42
n085 0155 Jump fre-
quency 3
Frequency
reference
0.00
to
400.0
0.01
Hz
0.00 No 6-42
n086 0156 Jump
width
* Set n083 to n085 to satisfy the following
condition.
n083 y n084 y n085
0.00
to
25.50
0.01
Hz
0.00 No 6-42
n087 0157 Accumu-
lated oper-
ating time
function
selection
(See note.)
Selects the operating status to be accumu-
lated.
0: Accumulate the time that the Inverter power
is ON (i.e., the time from when the power is
turned ON until it is shut OFF).
1: Accumulate Inverter execution time (i.e., the
time that forward or reverse signals are being
input).
0, 1 1 0 No 6-43
n088 0158 Accumu-
lated oper-
ating time
(See note.)
Sets the initial value for the accumulated oper-
ating time, with 10 h as 1.
The accumulation begins from the set time.
The accumulated operating time’s monitor val-
ue (U-13) can be cleared to 0 by setting “0”
here.
0 to
6,550
1=10
H
0 No 6-43
Note Accumulated operating time can be selected with 5.5-kW and 7.5-kW Inverters only.
List of Parameters Chapter 10
