Omron SYSDRIVE 3G3MV SERIES User Manual

2-27
D Installing a Thermal Relay
The Inverter has an electronic thermal protection function to protect the motor from overheating. If, how-
ever, more than one motor is operated with one inverter or a multi-polar motor is used, always install a
thermal relay (THR) between the Inverter and the motor and set n037 to 2 (no thermal protection).
In this case, program the sequence so that the magnetic contactor on the input side of the main circuit is
turned OFF by the contact of the thermal relay.

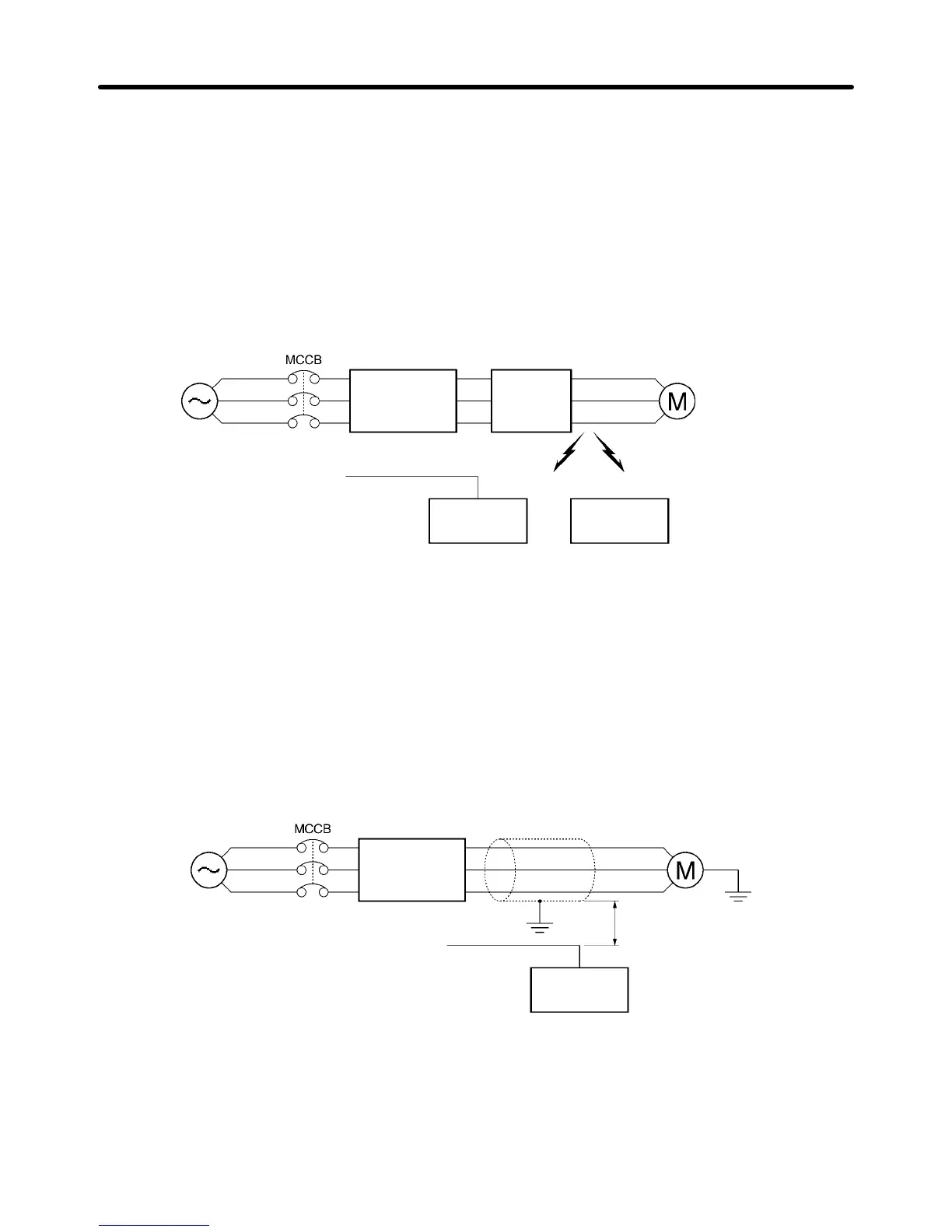

D Installing a Noise Filter on the Output Side
Connect a Noise Filter to the output side of the Inverter to reduce radio noise and induction noise.
Power
supply
3G3MV
SYSDRIVE
3G3IV-PLF
Noise
Filter
Signal line
Induction noise Radio noise
Controller
AM radio
Induction Noise: Electromagnetic induction generates noise on the signal line, causing the con-
troller to malfunction.
Radio Noise: Electromagnetic waves from the Inverter and cables cause the broadcasting
radio receiver to make noise.
D Countermeasures against Induction Noise
As described previously, a Noise Filter can be used to prevent induction noise from being generated on
the output side. Alternatively, cables can be routed through a grounded metal pipe to prevent induction
noise. Keeping the metal pipe at least 30 cm away from the signal line considerably reduces induction
noise.
Power supply
3G3MV
SYSDRIVE
Metal pipe
30 cm min.
Signal line
Controller
Design Chapter 2

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
