Remove a DIMM
See “Determine Which DIMM Is Faulty (LEDs)” on page 109.
3.
Remove the DIMM.
Caution - Use caution when pressing the DIMM ejector latch to ensure that you do not come
into contact with the adjacent DCDC power board. Doing so might loosen, or otherwise
adversely impact, the DCDC board, causing the server to report system errors.

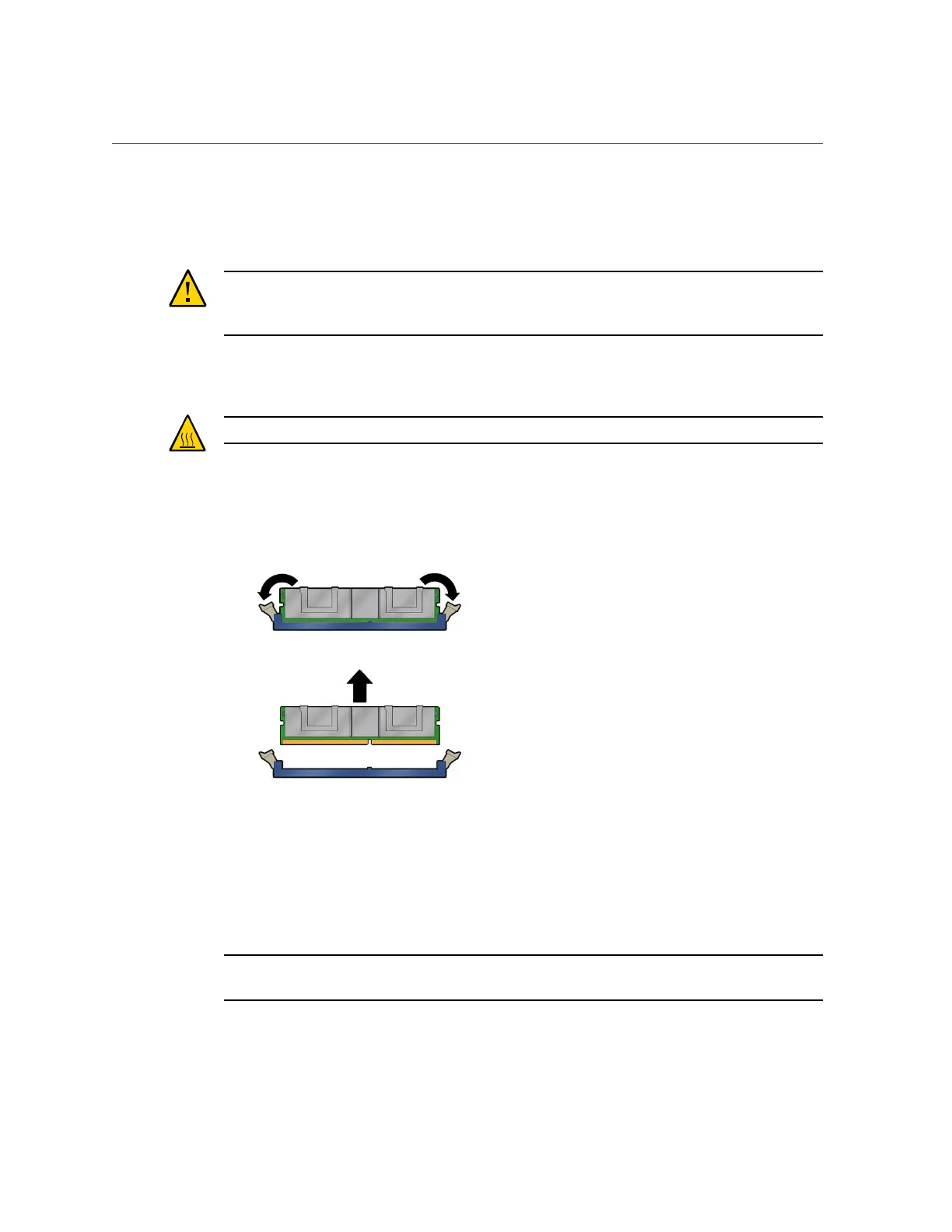

a.
Push down on the ejector tabs on both sides of the DIMM until the DIMM is
released.
Caution - DIMMs and heat sinks on the motherboard might be hot.
b.
Grasp the top corners of the faulty DIMM, lift it out of its slot, and place it on
a grounded antistatic mat.
4.
Repeat the previous step for any other DIMMs that you need to remove.
5.
Determine your next step.
■ If you are replacing a faulty DIMM, continue to “Install a
DIMM” on page 114.
Note - Confirm that the replacement DIMM is the same size and type of the faulty DIMM. See
“DIMM Configuration” on page 106.
