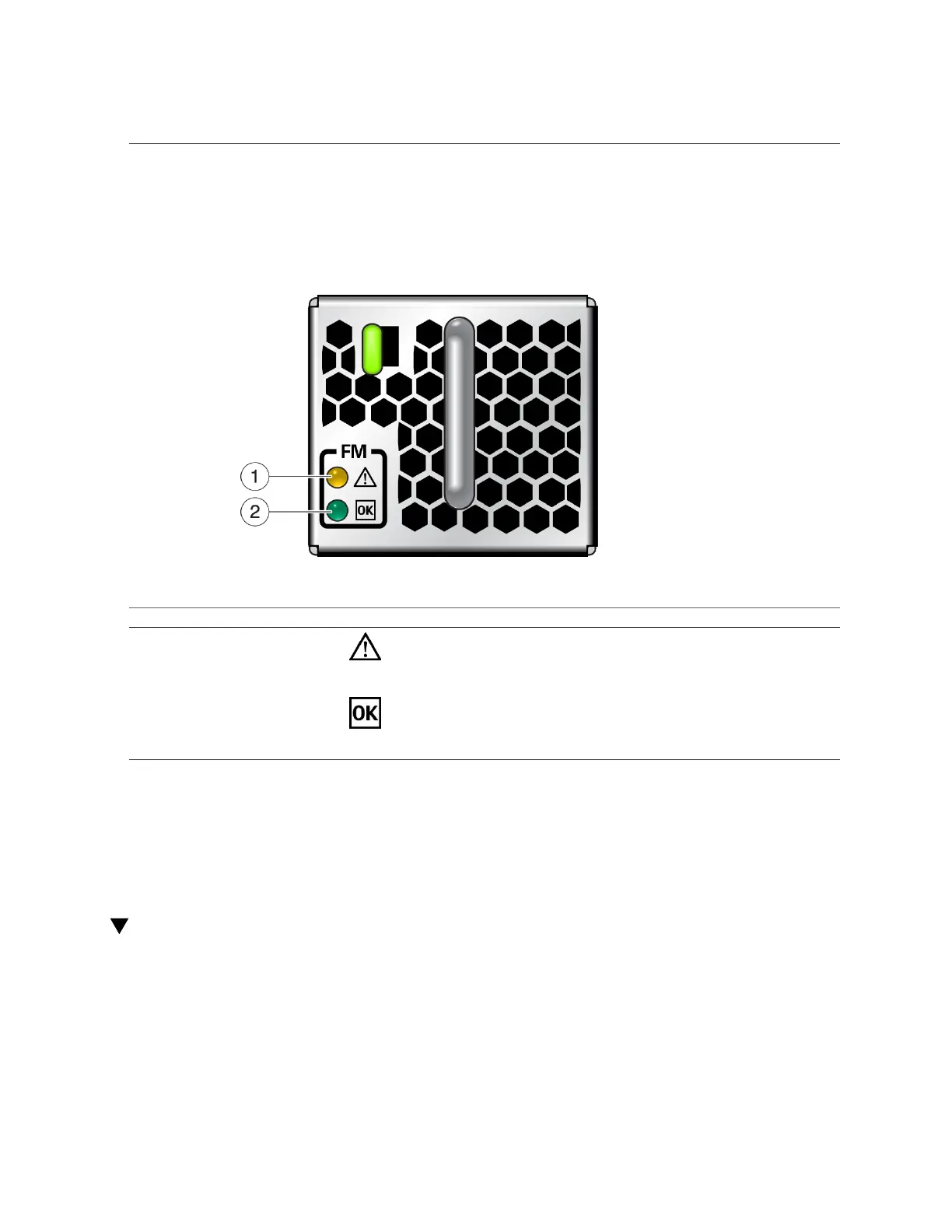

Fan Module LED (Switch Chassis)

No. LED Icon Description

1 Service Required LED

(amber)

Indicates that service is required.

The fmadm faulty command provides details about any faults that

cause this indicator to light.

2 OK LED (green) Indicates these conditions:

■ Off – Fan module is not running in its normal state.

■ Steady on – Fan module is powered on and is running normally.

Related Information

■

“Checking for Faults” on page 35

■

“Interpreting LEDs” on page 44

Remove a Fan Module (Switch Chassis)

This procedure can be performed by a customer while the server is running if there are at least

five of the six fan modules operating for each switch unit.

184 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
