DIMM Names
Related Information
■
“DIMM Names” on page 108
■
“Remove a DIMM” on page 112
■
“Install a DIMM” on page 114

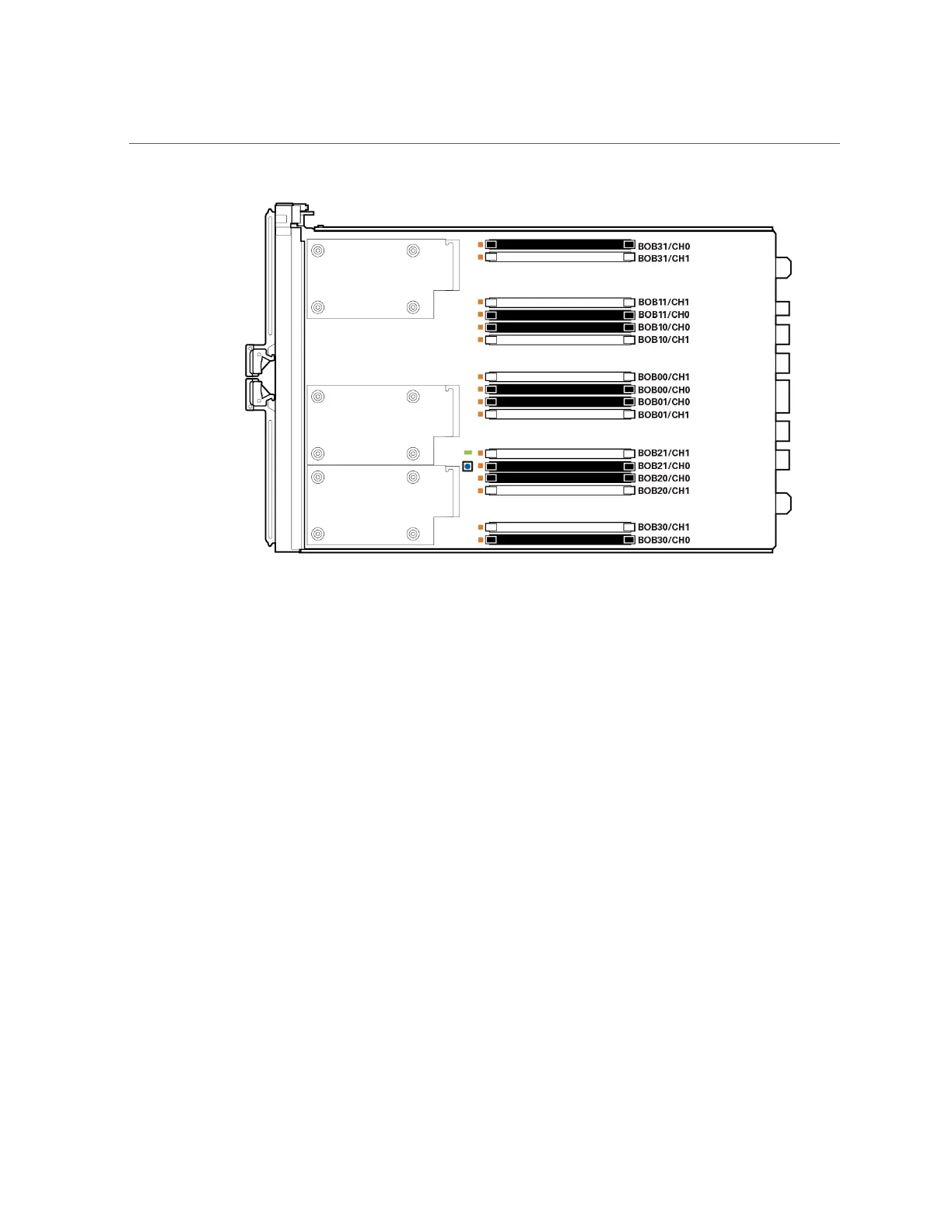

DIMM Names
DIMMs follow the naming convention /SYS/CMIOUx/CM/CMP/BOByw/CHz/DIMM with the
following values:
■
CMIOU number:
■
SPARC M8-8, where x is 0 to 7
■
SPARC M7-8, where x is 0 to 7
■
SPARC M7-16, where x is 0 to 15
■
Buffer chip (BOB) number (where y is 0 to 3 and w is 0 or 1)
108 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
