Install a Front Indicator Panel

Install a Front Indicator Panel

1.

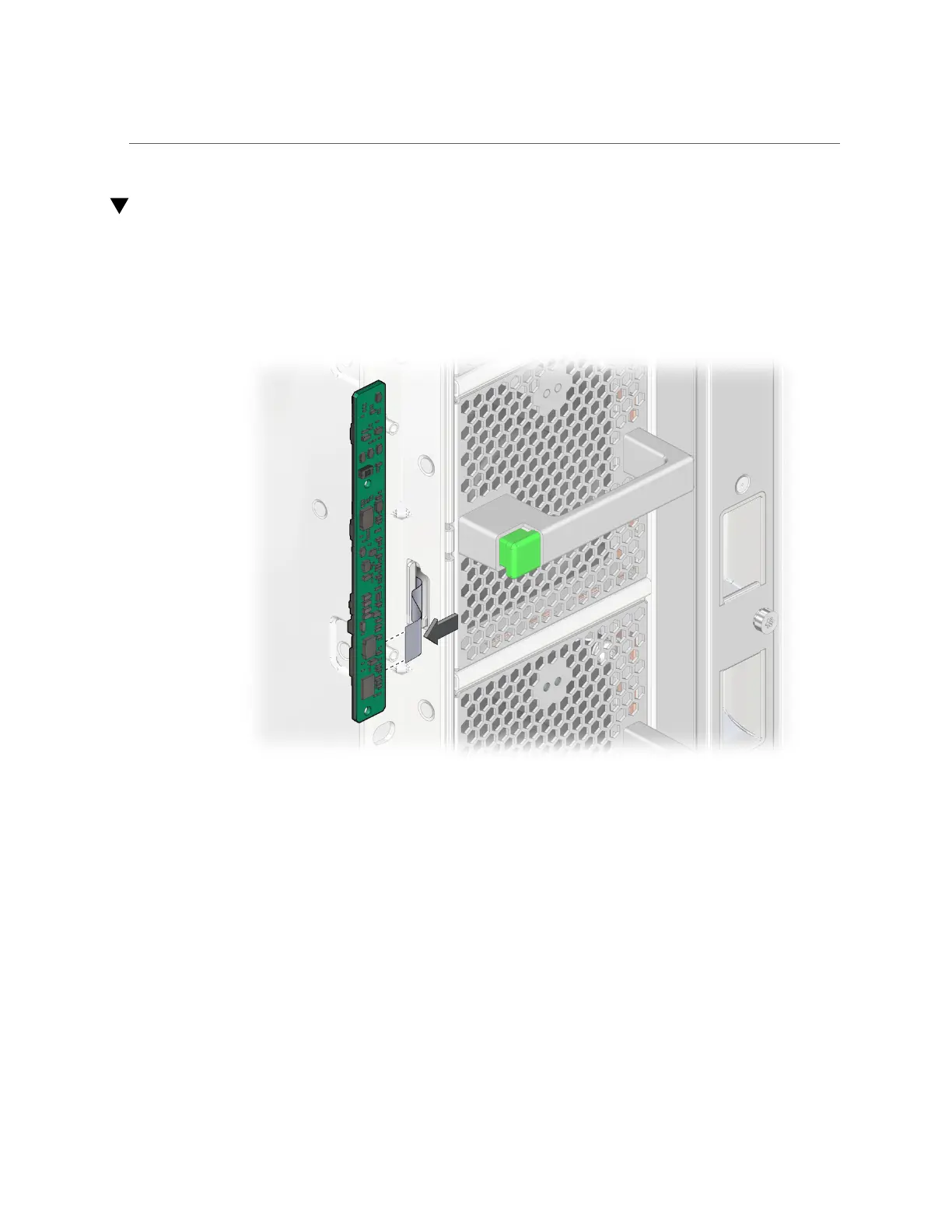

Connect the small cable from the chassis into the new indicator panel and

position the panel in place.

222 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
