Internal Interconnect Assembly Configuration

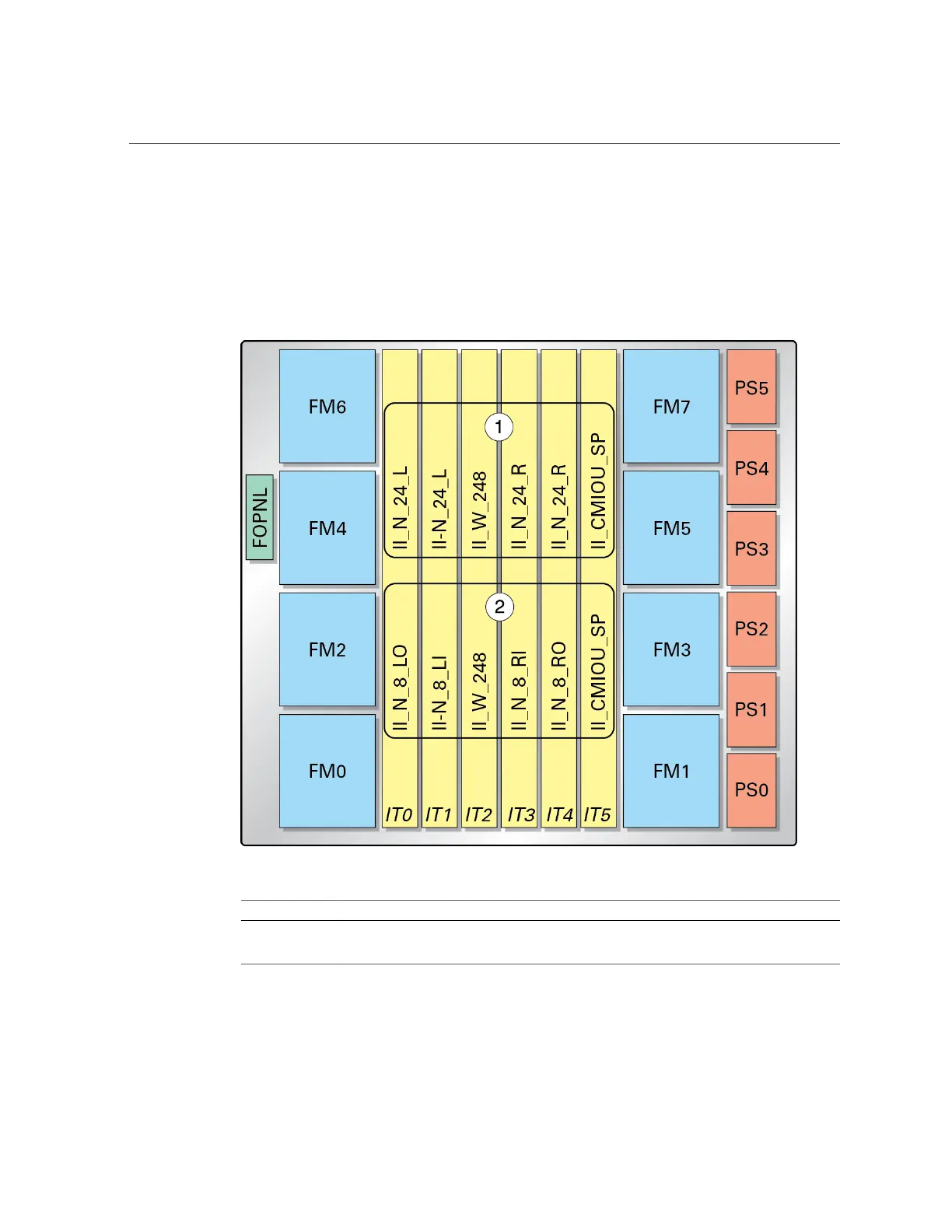

This figure shows the internal interconnect assembly slot labels and positions.

No. Description

1 SPARC M8-8 and SPARC M7-8 server (two PDomain) slot labels

2 SPARC M8-8 and SPARC M7-8 server (one PDomain) slot labels

298 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
