Install a Power Module

7.

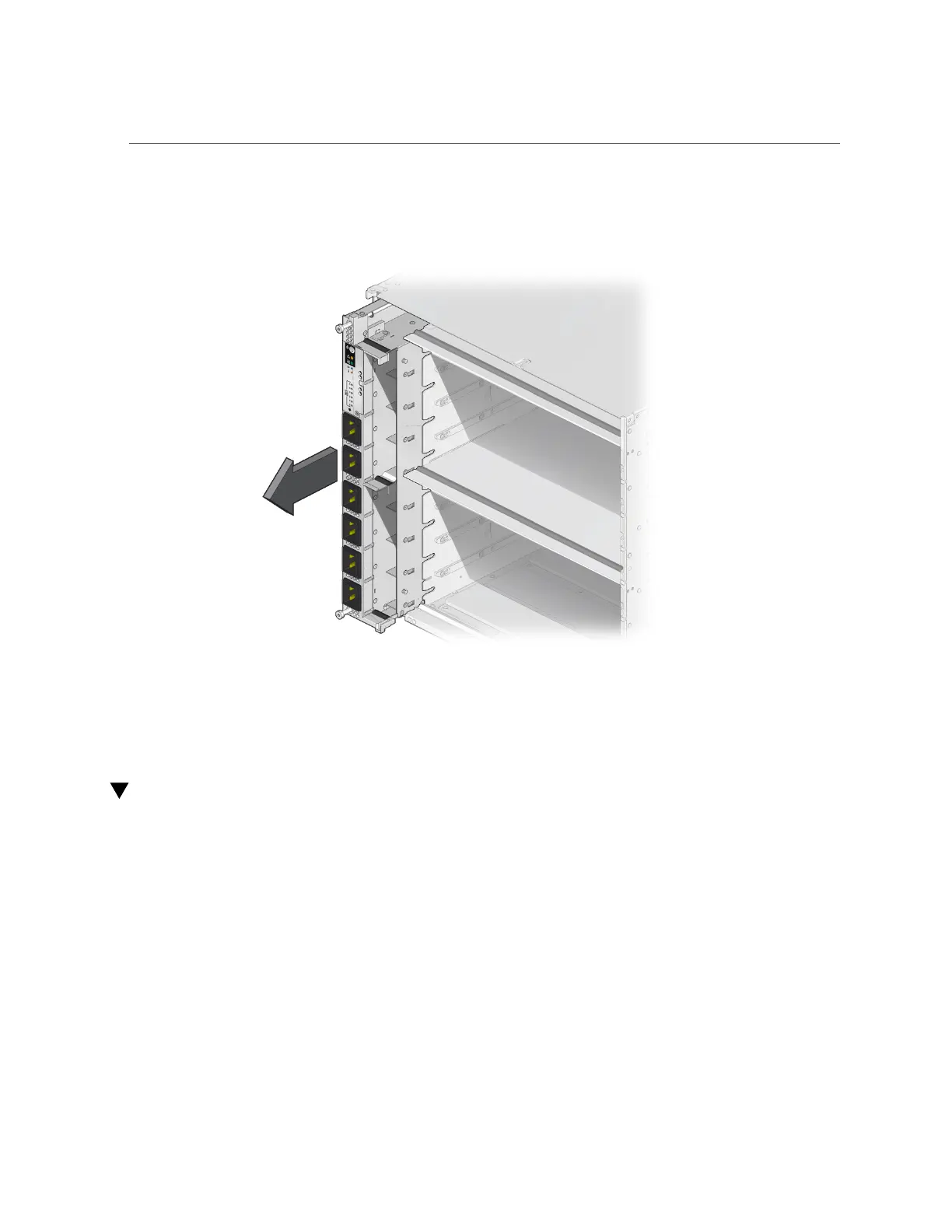

Slide the power module out of the server.

Related Information

■

“Install a Power Module” on page 238

Install a Power Module

1.

Slide the power module part way in and position it with the slot in the side wall.

238 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
