Remove a Power Module

6.

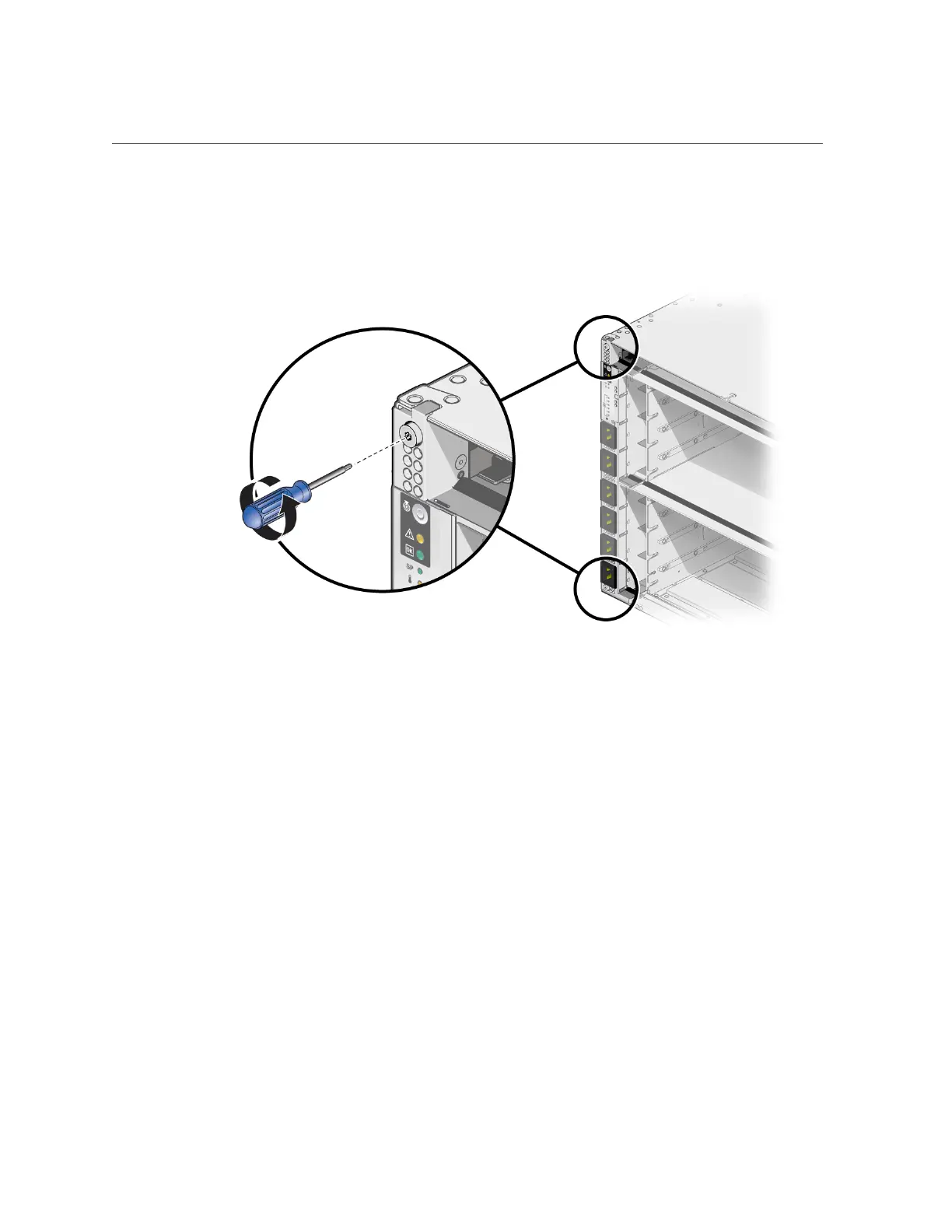

Use a T20 driver to loosen two captive screws from the top and bottom of the

power module to free it from the chassis.

Servicing Power Modules 237
