Install the Front Indicator Panel Cable
Install the Front Indicator Panel Cable
1.

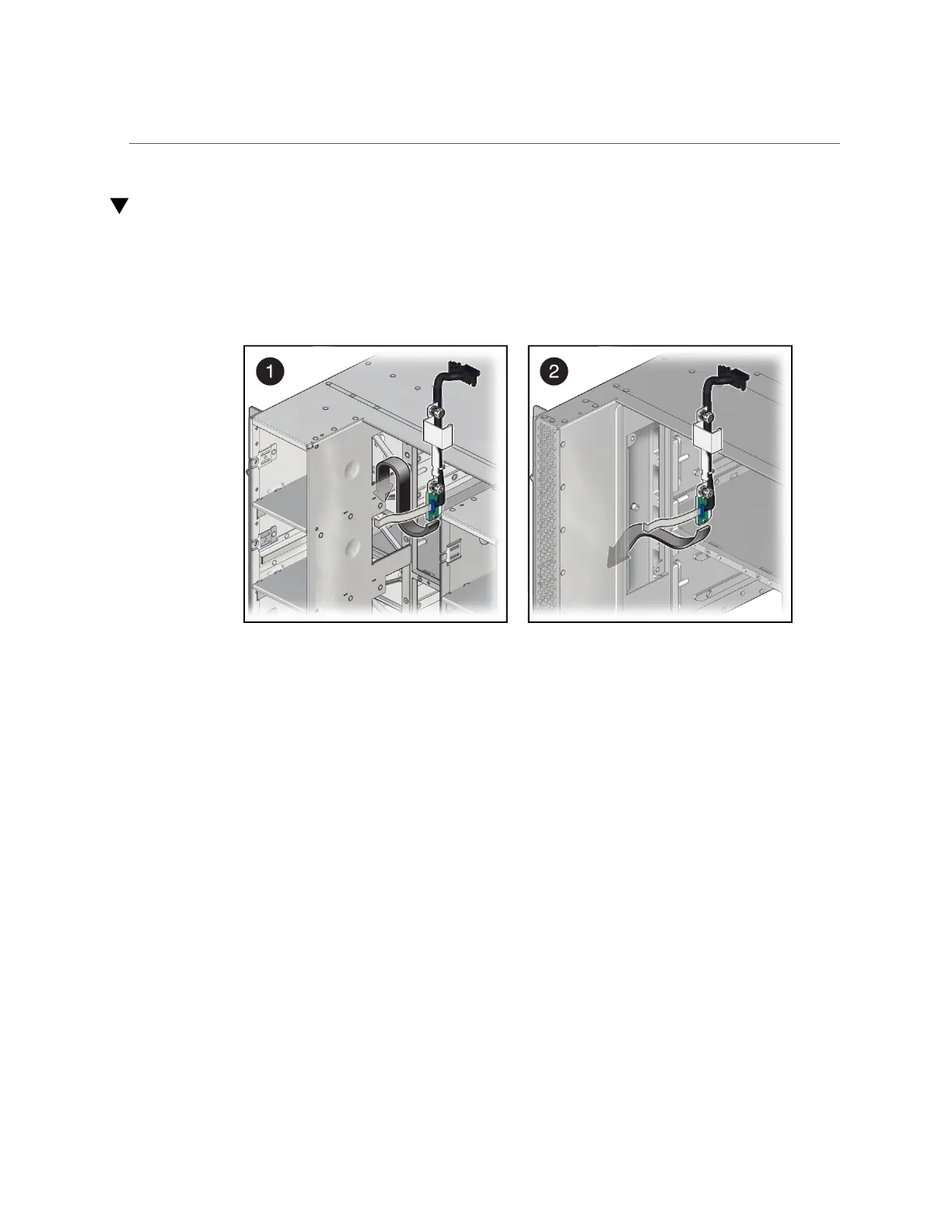

Install the cable through the opening in the chassis and secure the Molex
connector.
■
If the cable you are replacing is in the CMIOU chassis, from inside the CMIOU area, feed
the cable through the area behind the fan module bays (panel 1).
■
If the cable you are replacing is in the switch chassis, feed the cable through the area where
the access panel on the left side of the interconnect assembly was removed (panel 2).
2.
Reinstall the two captive screws that secure the cable to the chassis.
3.
If the cable you are replacing is in the switch chassis, reinstall the access panel
on the left side of the interconnect assembly area.
4.
If the cable you are installing is in the CMIOU chassis, reinstall the left CMIOU
chassis fan cable assembly.
See “Servicing a CMIOU Chassis Fan Cable Assembly” on page 207.
5.
Reinstall the front indicator panel.
See “Servicing the Front Indicator Panel” on page 217.
6.
Reinstall the interconnect assemblies in the front of the affected chassis.
232 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
