Remove a PDECB

For information about preparing a switch unit for removal and for information about removing a

switch unit, see “Servicing Switch Units” on page 189.

5.

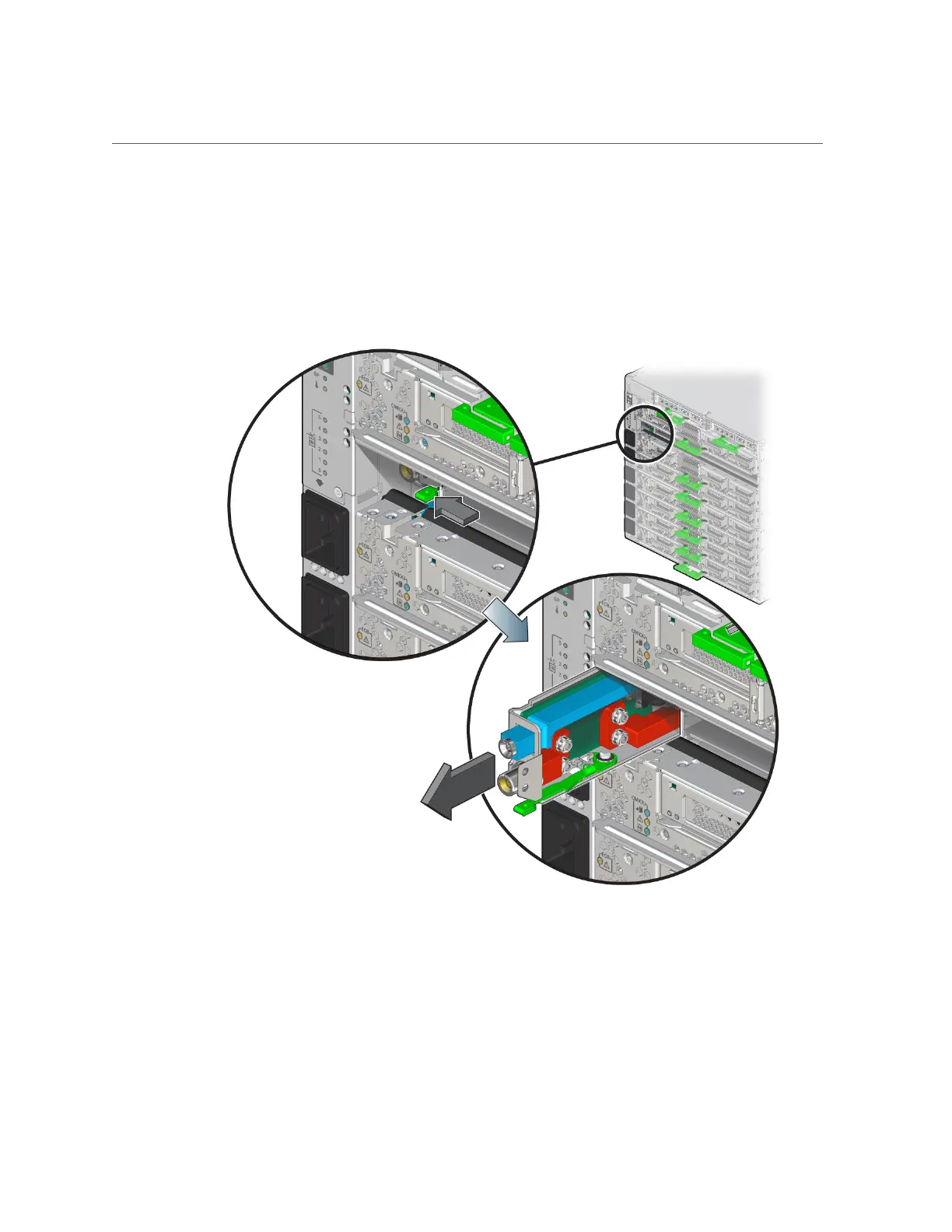

Press the latch on the bottom of the PDECB to the left and slide it out of the

chassis.

Related Information

■

“Install a PDECB” on page 202

Servicing PDECBs 201
