Install an SP Internal Interconnect Assembly

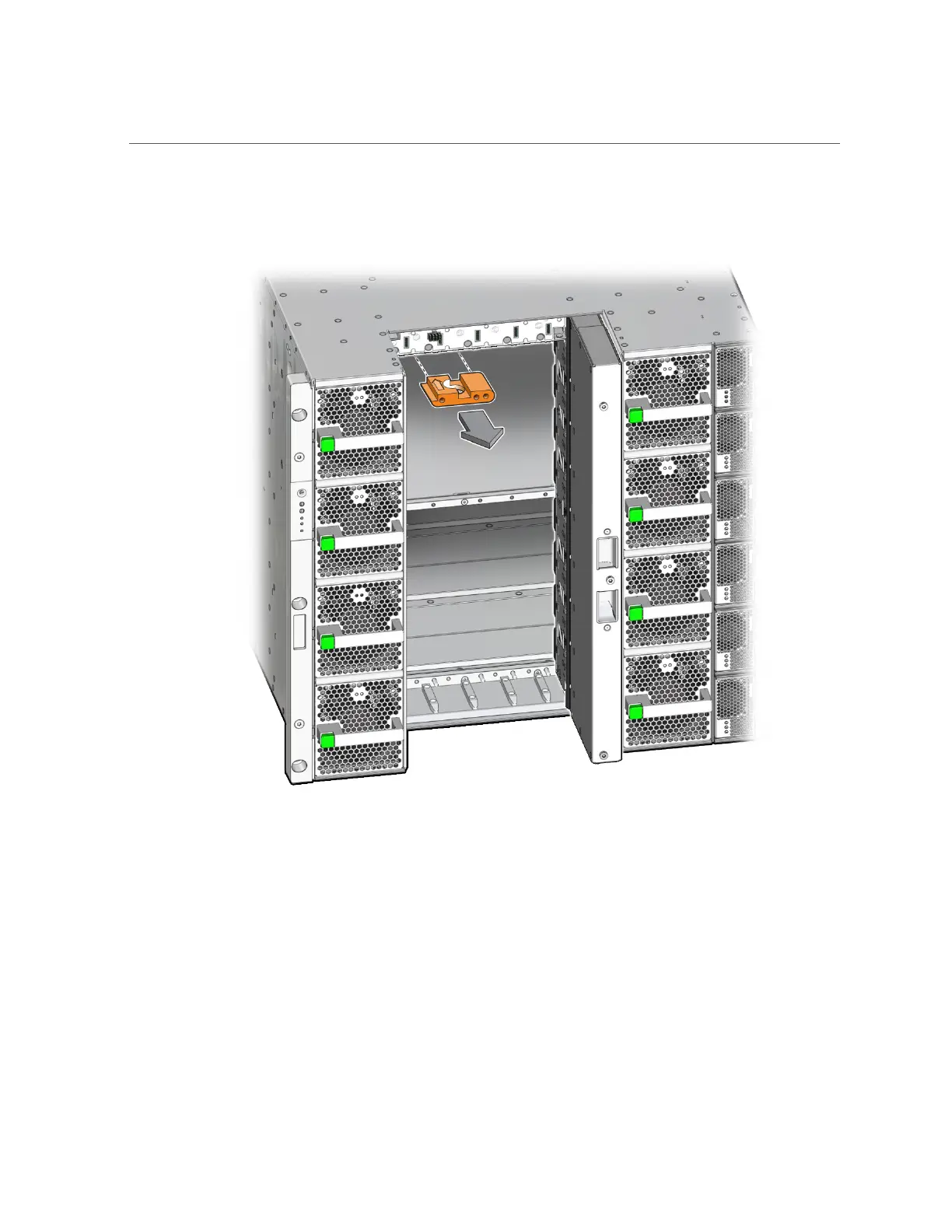

Remove the guide pin shield.

Complete the following steps to reinstall components you removed to service

the assembly.

Reinstall all of the interconnect assemblies that you removed.

See “Servicing Internal Interconnect Assemblies” on page 297 or “Servicing External

Interconnect Assemblies” on page 305.

Reseat all CMIOUs or switch units from the impacted chassis.

See “Reseat a CMIOU” on page 101 or “Reseat a Switch Unit” on page 196.

294 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
