Install an External Interconnect Assembly

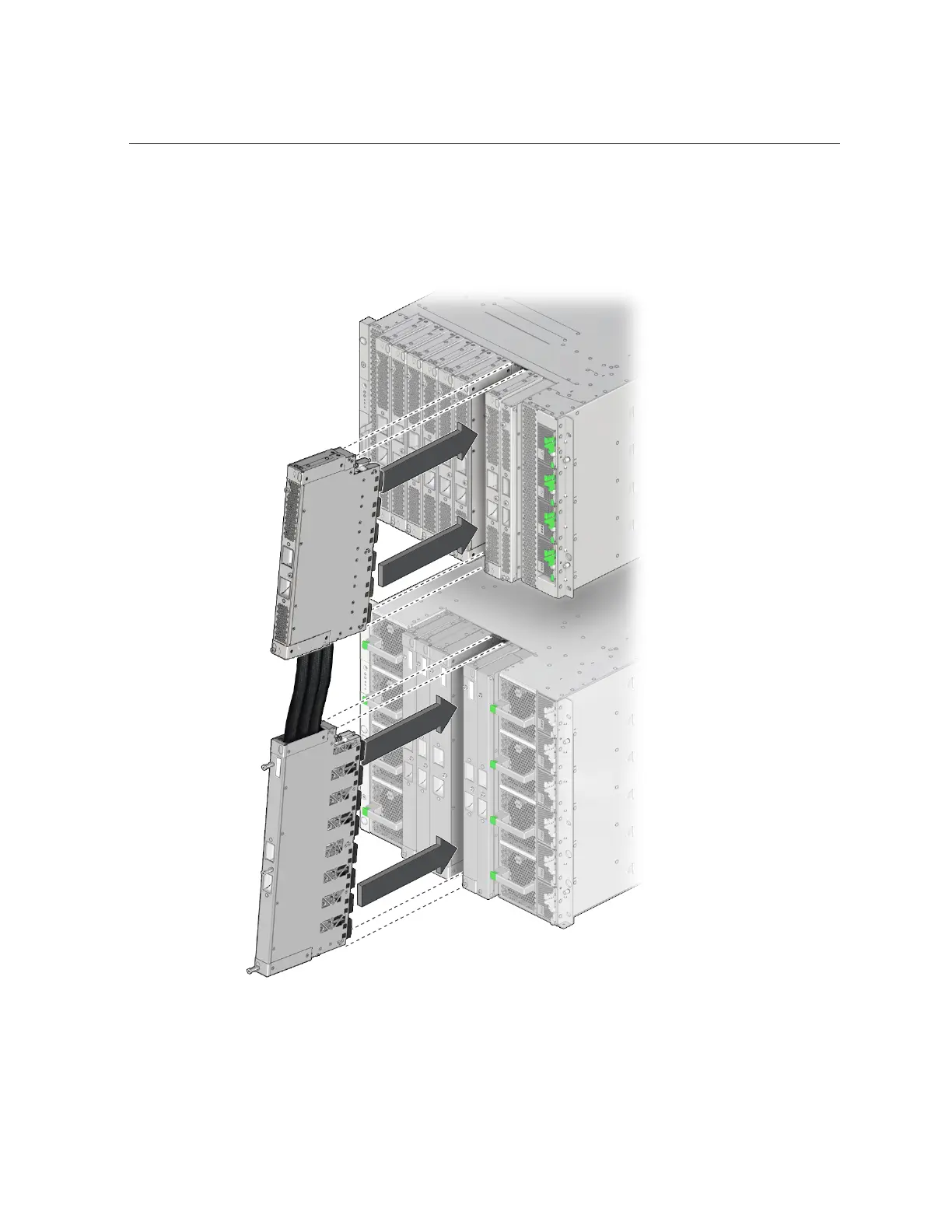

Guide the TOP end of the assembly into place first, then guide the BOTTOM end into place.

Push the TOP end in until the safety latch clicks, then push in the BOTTOM end in.

312 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
