Connector Locations
Figure Legend
1
Power supply 1
2
Power supply 2
3
System status LEDs
4
Serial management port
5
Service processor network management port
6
Gigabit Ethernet ports NET 0, 1, 2, 3
7
USB ports 0, 1
8
HD15 video connector
FIGURE 29

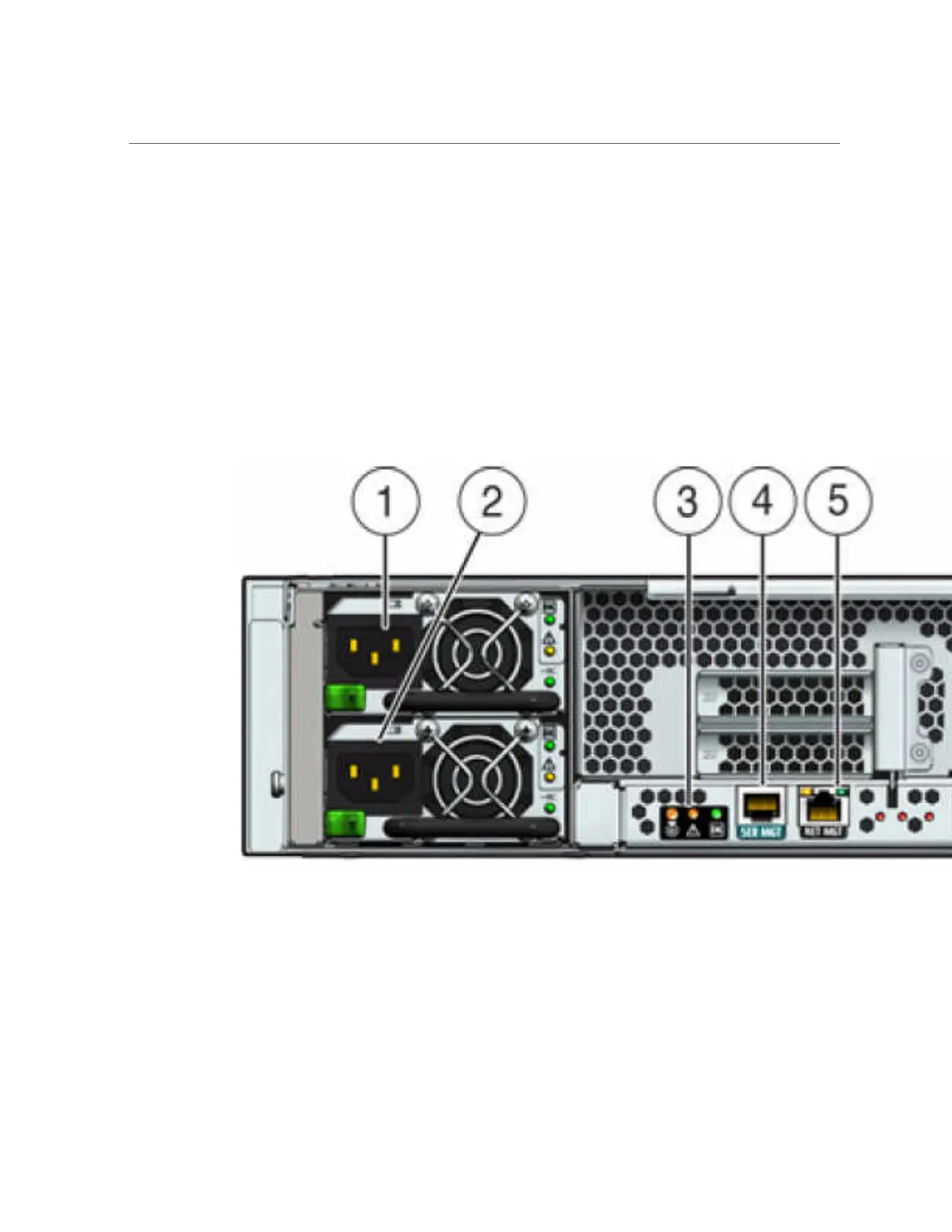

Exadata Storage Server
Figure Legend
1
Power supply 1
2
Power supply 2
3
System status LEDs
4
Serial management port
