Parker Hannifin

P series User Guide 106

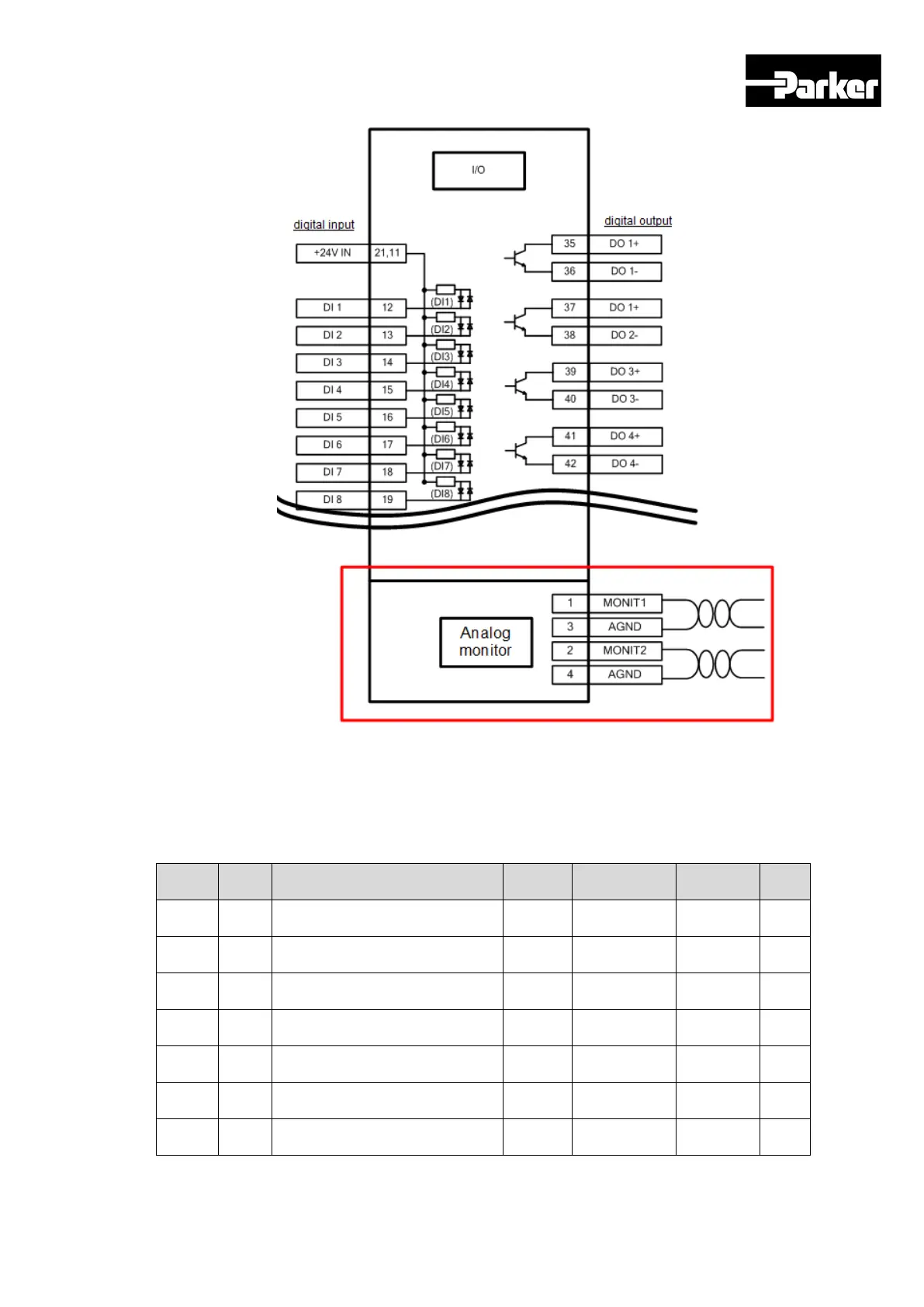

Figure 35. Analog Monitor

5.8.1 Related Objects

Index

Sub

Index

Name

Variable

Format

Accessibility

PDO

Allocation

Unit

0x2220

Analog Monitor Output Mode

UINT

0x2221

Analog Monitor Channel 1

Select

UINT

0x2222

Analog Monitor Channel 2

Select

UINT

0x2223

Analog Monitor Channel 1

Offset

DINT

0x2224

Analog Monitor Channel 2

Offset

DINT

0x2225

Analog Monitor Channel 1

Scale

UDINT

0x2226

Analog Monitor Channel 2

Scale

UDINT

Table 66. Analog Monitor Related Objects
