P series User Guide 152

0x2303

Speed Command S-

curve Time

UINT

Table 85. Procedure Function Related Objects

7.1.2 Program Jog Operation

Jog operation is a function to check the action of the servo motor by speed control, without

the host device, based on the preset operation speed and operation time.

Please check the following before operation

 The main power is ON

 No alarm

 Servo is OFF

 Speed and time are set considering the condition of the machine

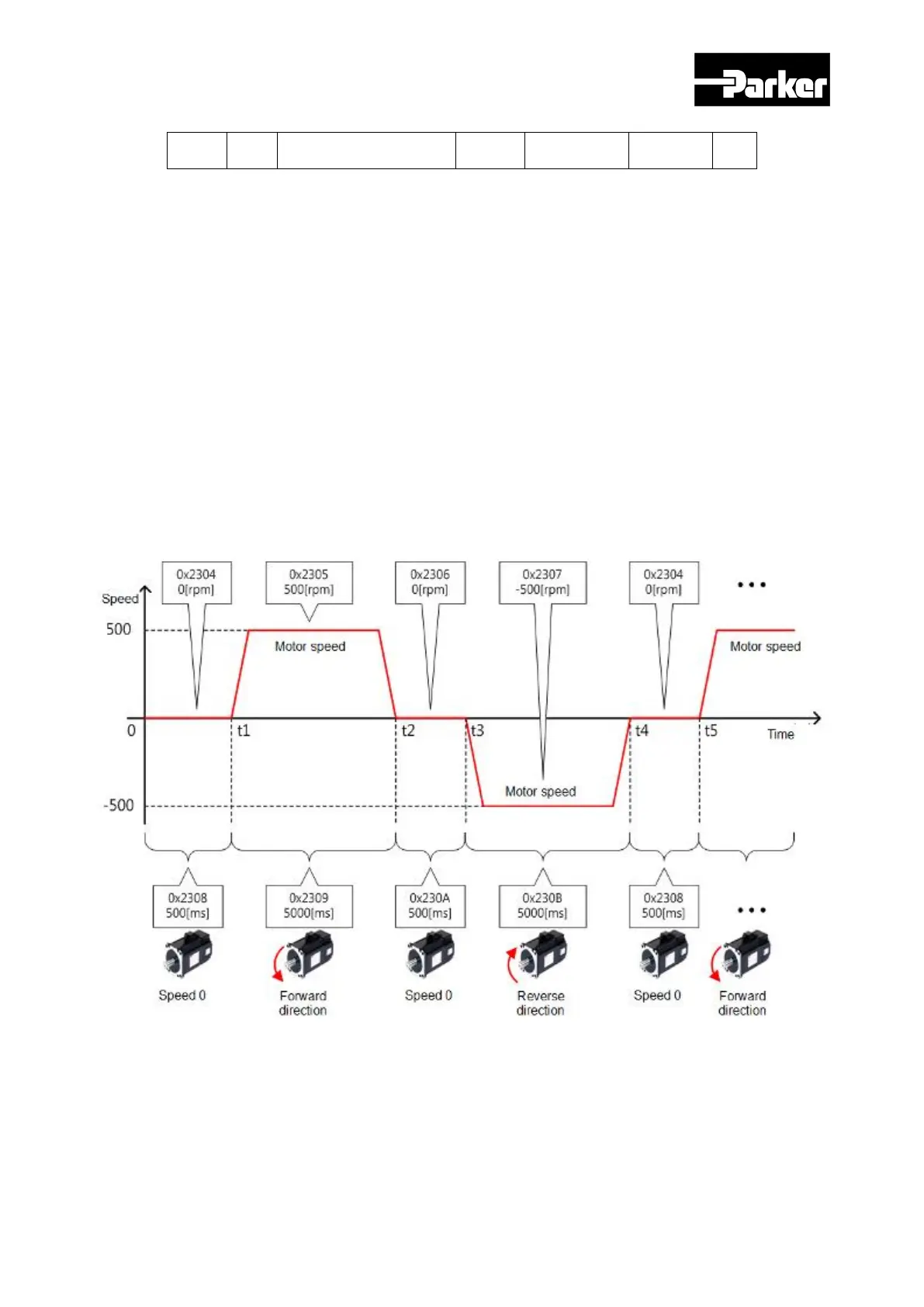

Figure 51. Program Jog Operation
