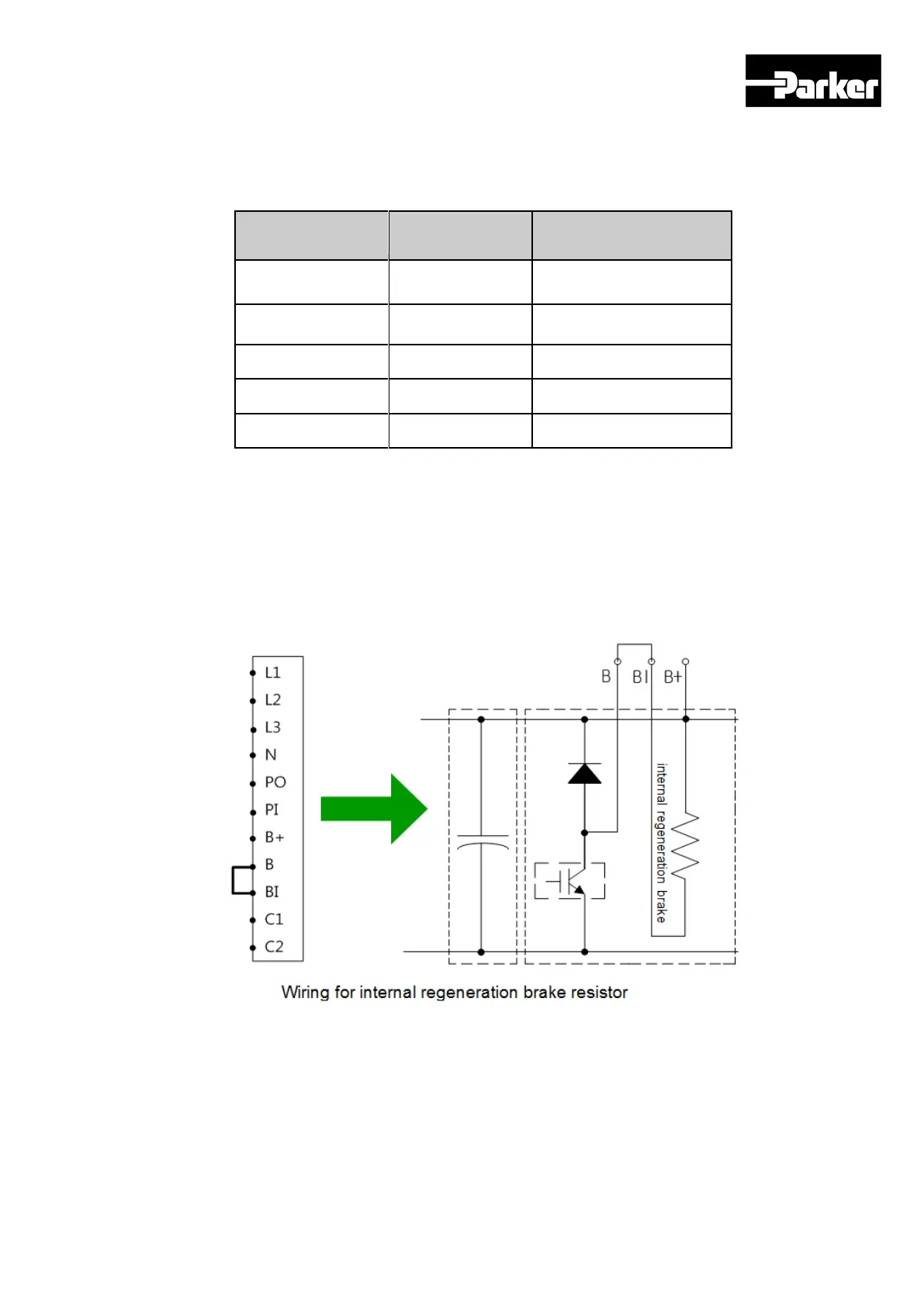

3.6.1 Internal Resistor Setting

This drive has a built-in regeneration brake corresponding to the drive power.

Specifications of internal regeneration brake for each drive power are as follows.

Drive Power

Internal

Resistance

Internal Resistance

Power

100W

100Ω

50W

200W

100Ω

50W

400W

100Ω

50W

1KW

40Ω

100W

3.5KW

12.6Ω

150W

Table 15. Internal Resistor Setting

To use the regeneration broke built in the drive, you should set the brake in the

following order.

A. Regeneration brake wiring

- Check for B, BI terminal short (default short at the time of release from the

factory, 1kW or less)
