Parker Hannifin

P series User Guide 44

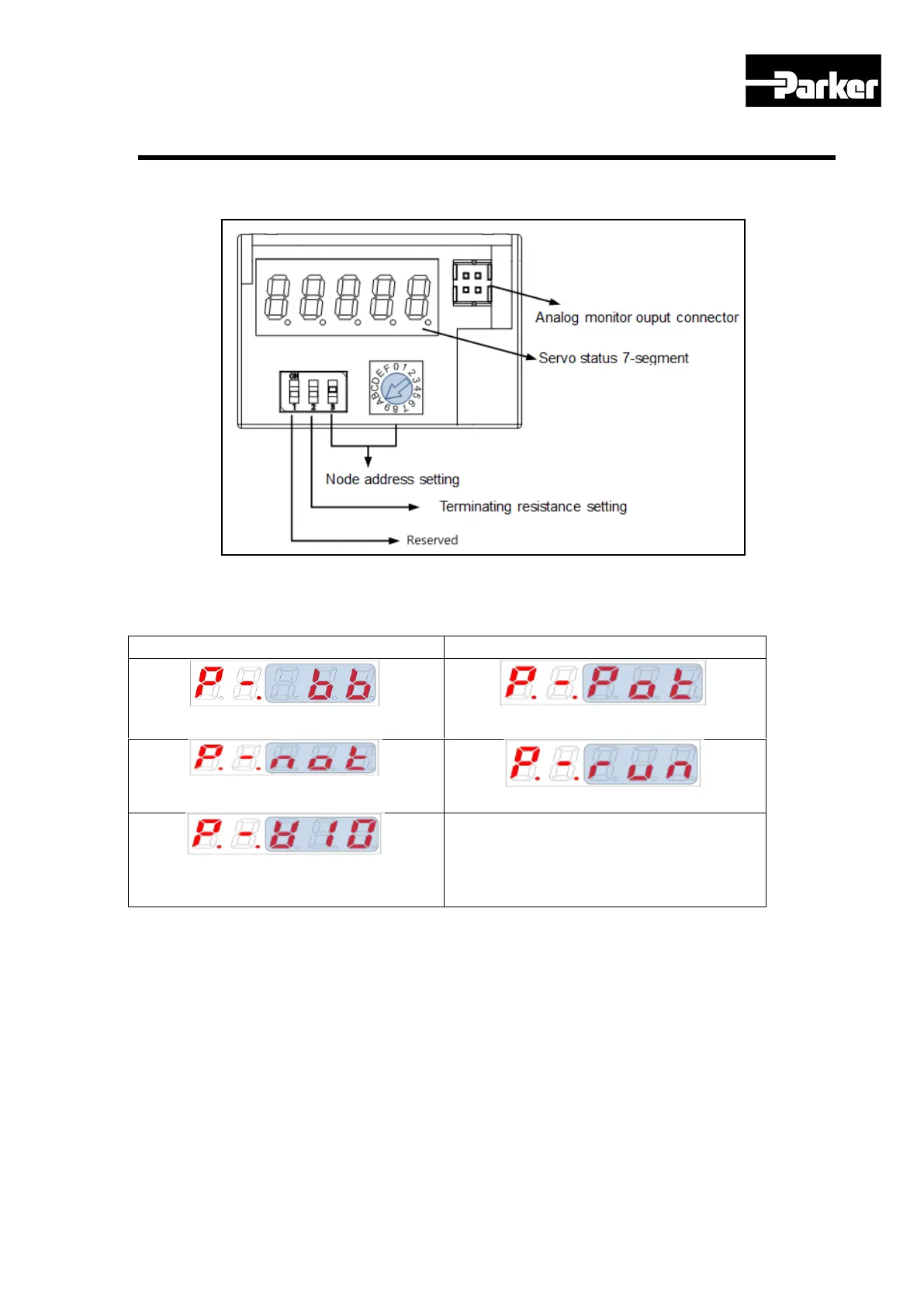

3.7 Drive Status Indicators

7-Segment for servo status display consist of the following 5 digits, from Digit 1 to Digit 5,

starting from the right.

Digit 3~1 of 7 –Segment, unless the servo alarm is set off, displays the following drive

statuses. Display of servo warning is given priority over other statuses.

Digit 3~Digit 1 Display

Status Description

Servo off

Positive limit sensor input

Negative limit sensor input

Servo on

Servo warning: W10 (code:10)

Digit4 displays the current operation status and the servo‘s READY status.
