Parker Hannifin

P series User Guide 35

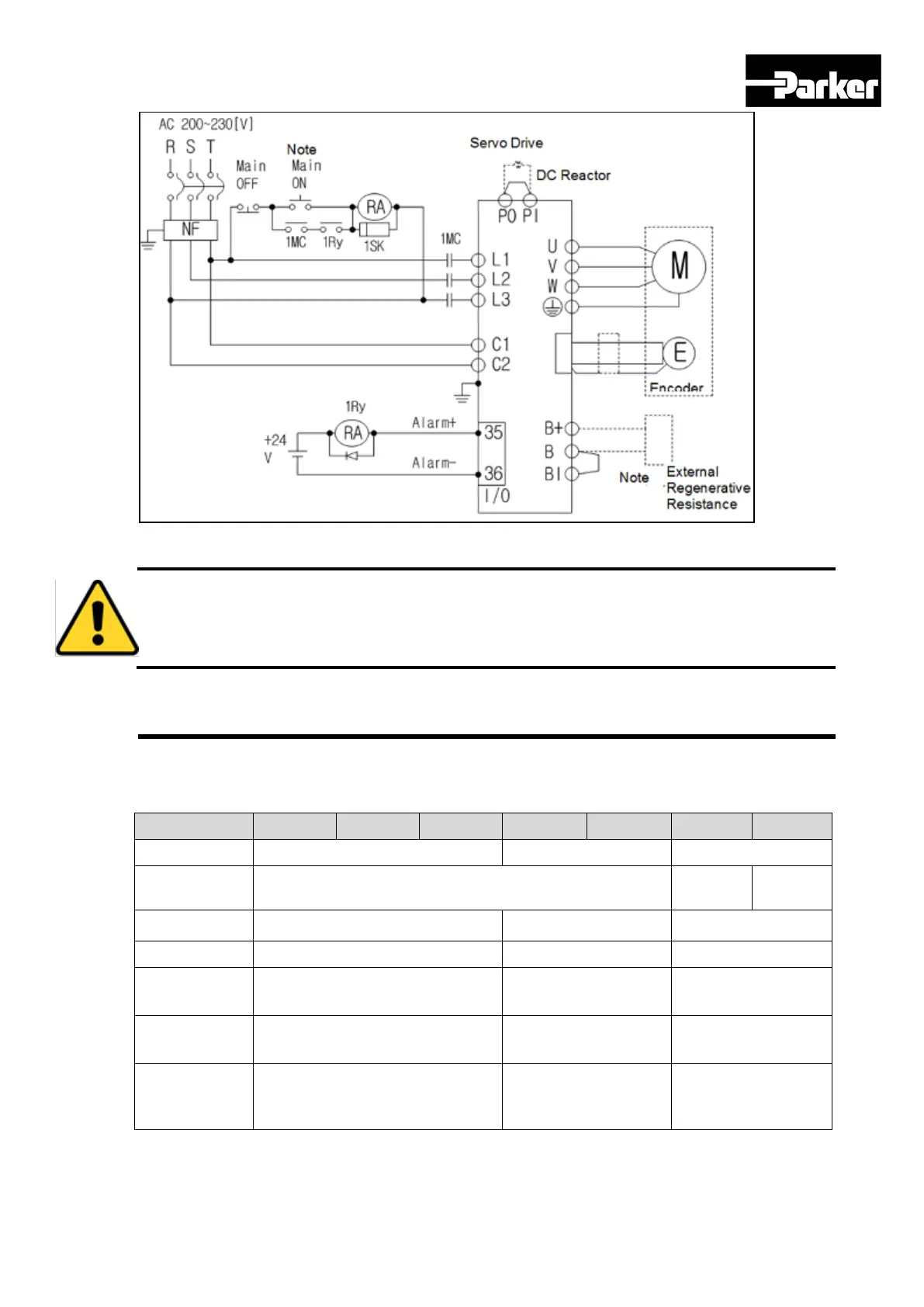

Figure 15. System Installation Overview

Warning

This product has been developed for industrial environments. Due to exposed high

voltage terminals, this product must not be accessible to users while under normal

operation.

3.3 Power Supply

3.3.1 Power Circuit Electronics Specification

Type

100W

200W

400W

800W

1kW

2kW

3.5kW

MCCB

ABS33bM(8A)

12A

24A

Noise Filter

(NF)

RFY-4010M

4020M

4030M

DC Reactor

HFN-6(6A)

HFN-10(10A)

HFN-30(30A)

GMC-9(11A)

GMC-18(18A)

GMC-40(35A)

Power Cable

AWG16

(1.25 SQ)

AWG14

(2.0 SQ)

AWG12

(4.0 SQ)

Pressure

Terminal

UA-F1510, SEOIL

(10mm Strip & Twist)

UA-F2010, SEOIL

(10mm Strip & Twist)

UA-F4010, SEOIL

(10mm Strip & Twist)

Recovery

Resistance

(default)

50[W]

100Ω

100[W]

40Ω

150[W]

13Ω

Table 11. Power Circuit Electronics Specification
