Parker Hannifin

P series User Guide 24

2.2.2 PM Motor Dimensions (FAL Series)

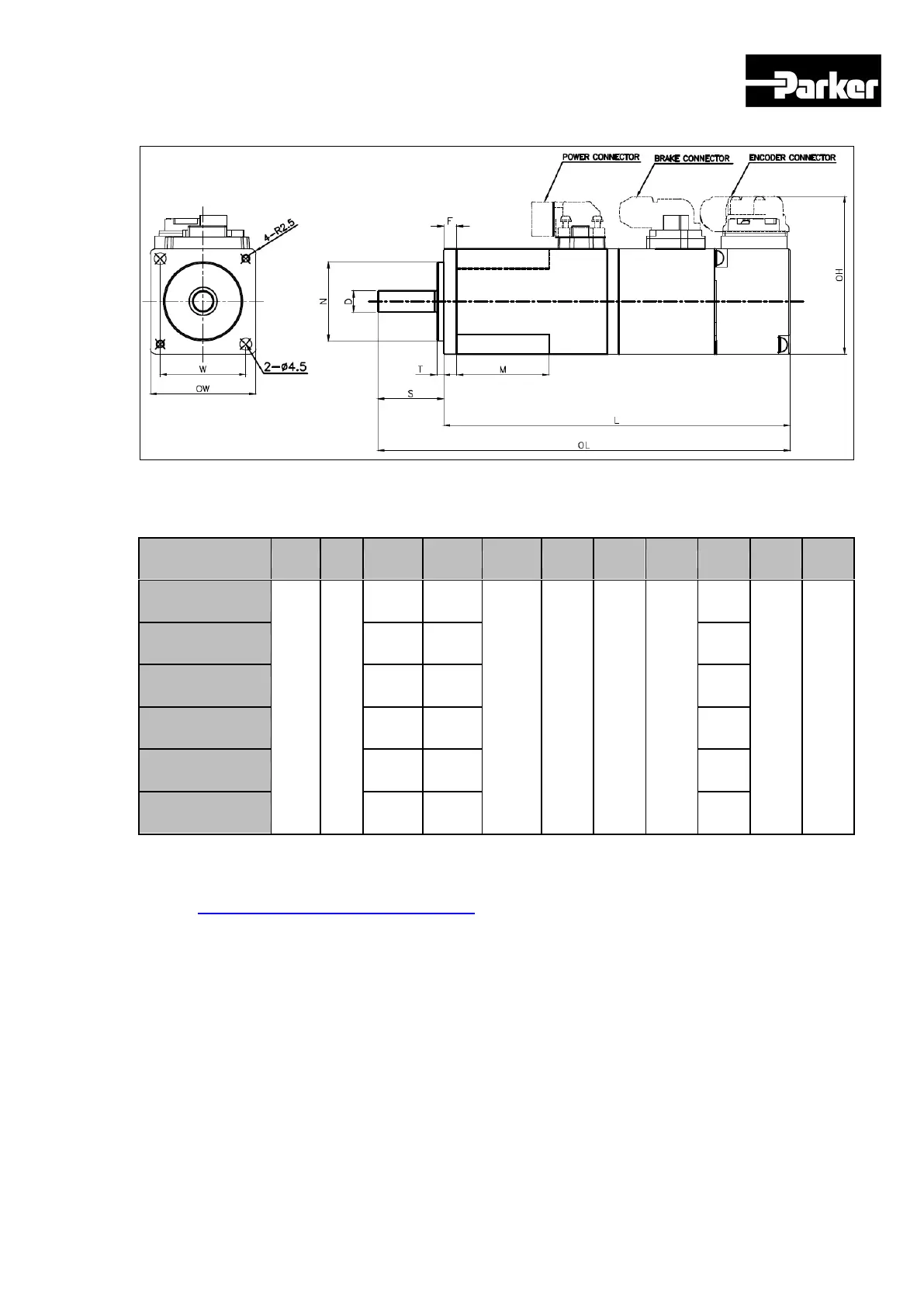

Figure 7. PM-FAL series Motor Dimension

( Unit : mm )

PM-FALR5AMN

103.2

78.2

32.5

2.5

PM-FAL01AMN

120.2

95.2

PM-FAL015AMN

140.2

115.2

PM-FALR5AM2

139.6

114.6

PM-FAL01AM2

156.6

131.6

PM-FAL015AM2

176.6

151.6

Table 4. PM-FAL series Motor Dimension

NOTE : PM-FAL series are no key type, Detail drawings are available at

http://solutions.parker.com/AUG_EM

Specification subject to change without notice.
