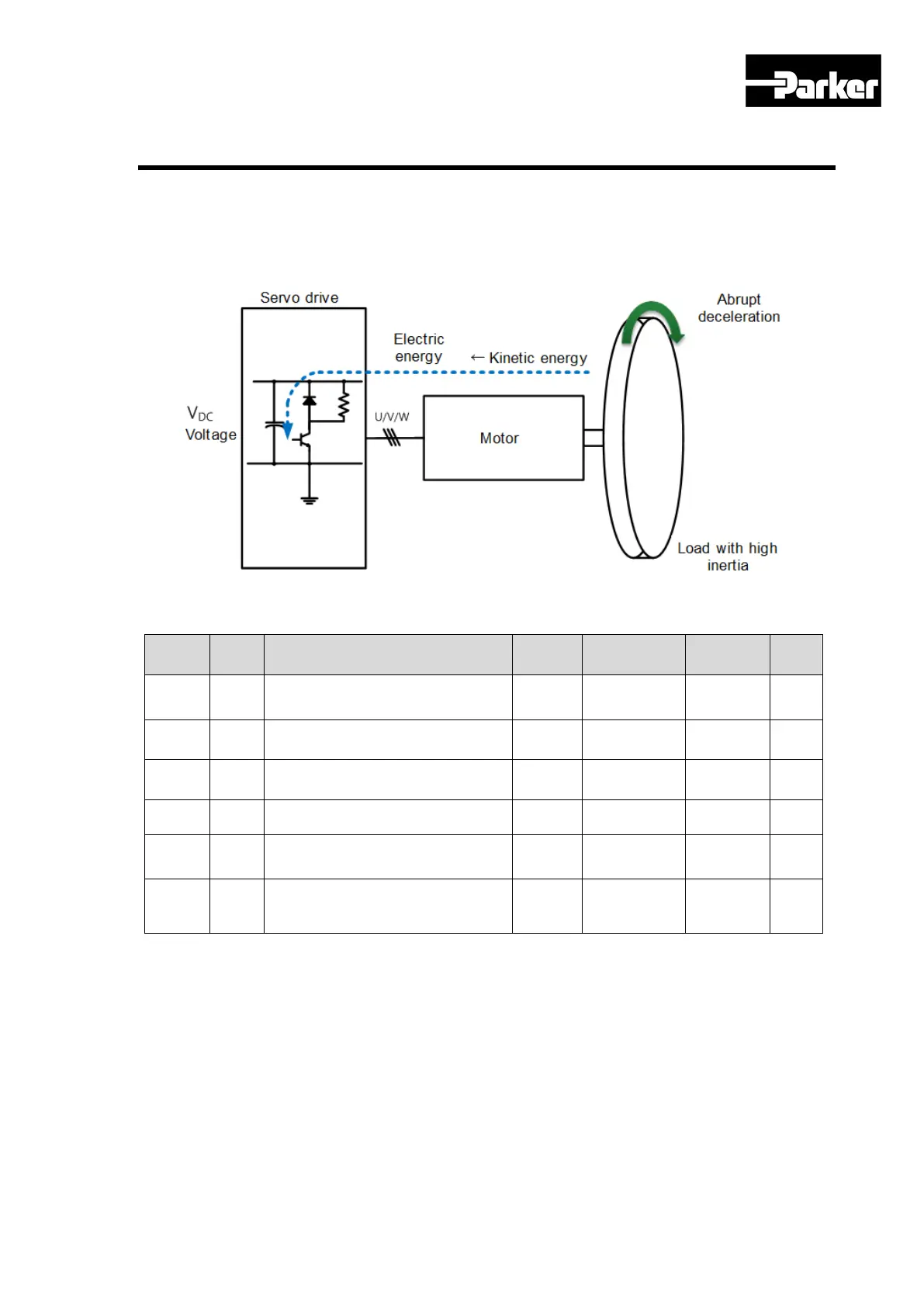

3.6 Regeneration Protection
Regeneration refers to the motor‘s kinetic energy being converted to electrical energy due to
driving a load with high inertia or abrupt deceleration, which then flows into the drive. When
this happens, regeneration brake is used to inhibit the rise of the drive‘s internal voltage (V
DC
)
and thereby prevent damage to the drive.
 Related Objects
Index
Sub
Index
Name
Variable
Format
Accessibility
PDO
Allocation
Unit
0x2009
-
Regeneration brake Resistor
Configuration
UINT
RW
No
-
0x200A
-
Regeneration brake Resistor
Derating Factor
UINT
RW
No
%
0x200B
-
Regeneration brake Resistor
Value
UINT
RW
No
Ω
0x200C
-
Regeneration brake Resistor
Power
UINT
RW
No
Watt
0x200D
-
Peak Power of Regeneration
brake Resistor
UINT
RW
No
Watt
0x200E
-
Duration Time @ Peak Power of
Regeneration brake Resistor
UINT
RW
No
ms
Table 14. Regeneration Related Objects
