P series User Guide 23
2.2 Dimensions
There are three basic housing sizes for the PD drives. This section contains the
dimensions for all PD drive models.
2.2.1 PD Drive Dimensions (PD-01xx to PD-35xx)

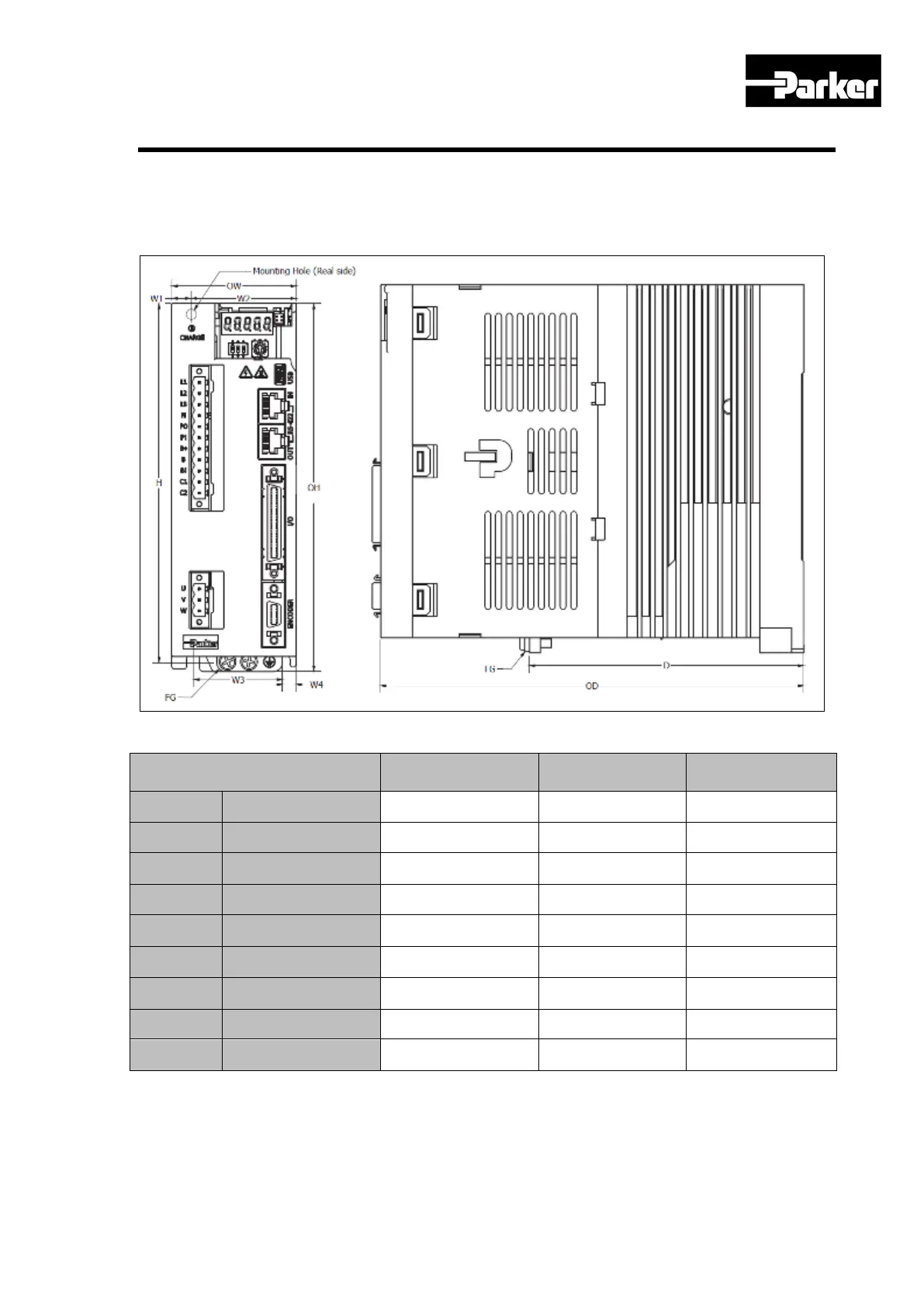

Figure 6. PD Drive Dimensions
( Unit : mm )
PD-01 ~ 04
PD-08 / 10
PD-20 / 35
H
Height
158
158
158
OH
Overall Height
169
169
169
OW
Overall Width
38
58
88
W1
Width 1
6
10
44
W2
Width 2
32
48
44
W3
Width 3
26
42
78
W4
Width 4
6
6
5
D
Depth
107.7
127.7
112.5
OD
Overall Depth
173
197
198
Table 3. PD Drive Dimensions
