P series User Guide 63

NOTE) When using PC as host controller, USB to RS-422 communication convertor is

required.

4.2.1 Terminal Configuration

Item

Specifications

Communication Standard

ANSI/TIA/EIA-422 Standard

Communication Protocol

MODBUS-RTU

Connector

RJ45 x 2

Data

Type

Data bit

8bit

Stop bit

1bit

Parity

None

Synchronism

Asynchronous method

Transmission Speed

9600 /19200/38400/57600 [bps]

Speed can be selected at communication speed setting

[0x3002]

Transmission Distance

Up to 200 [m]

Power Consumption

Under 100[㎃]

Table 19. RS-422 Terminal Specification

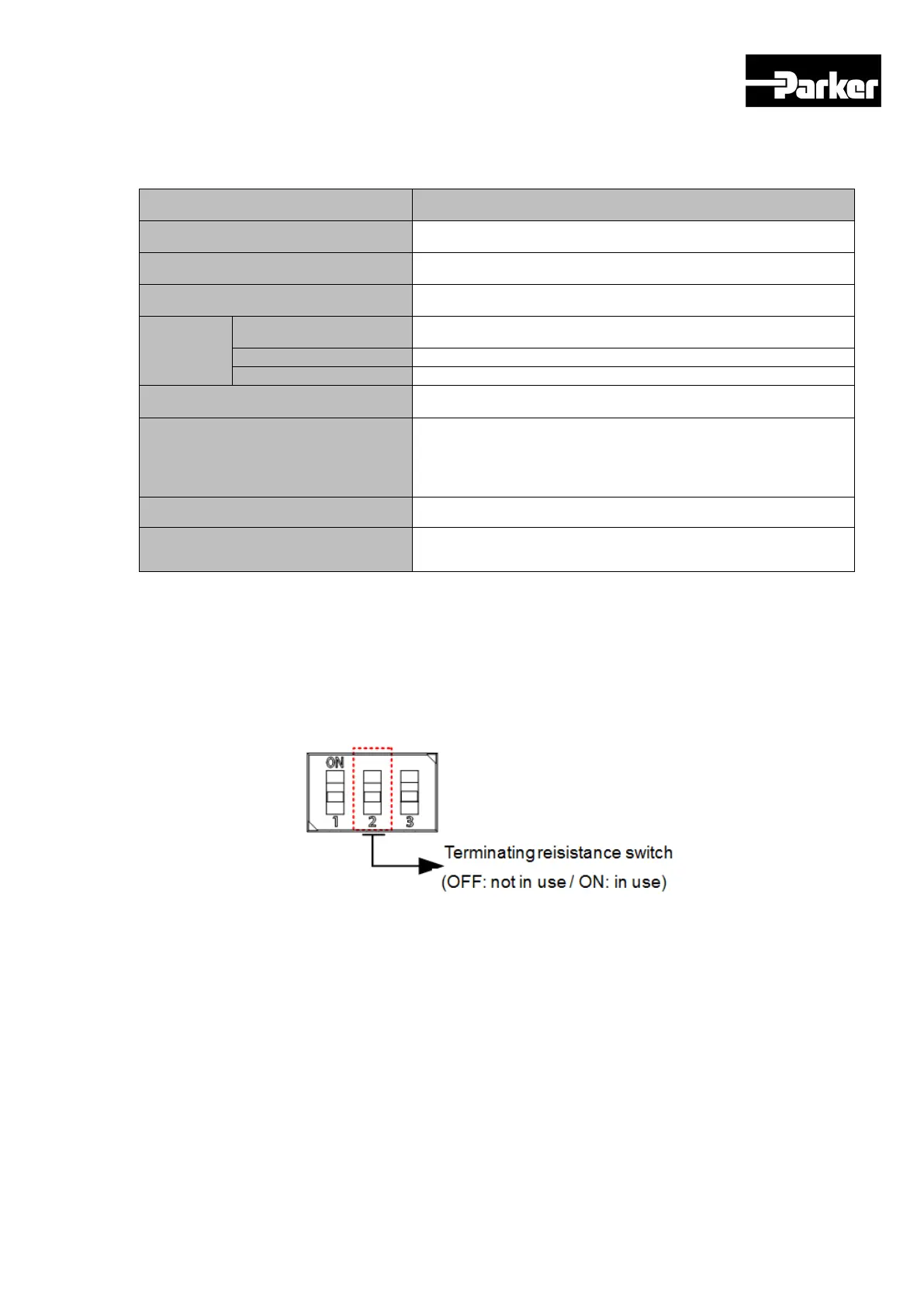

4.2.2 Establishing Communication

The terminating resistance used for RS-422 communication is configured within this

drive.

The terminating resistance inside the drive is 120Ω. To use the terminating resistance,

turn on the switch as shown in the figure below.
