Parker Hannifin

P series User Guide 137

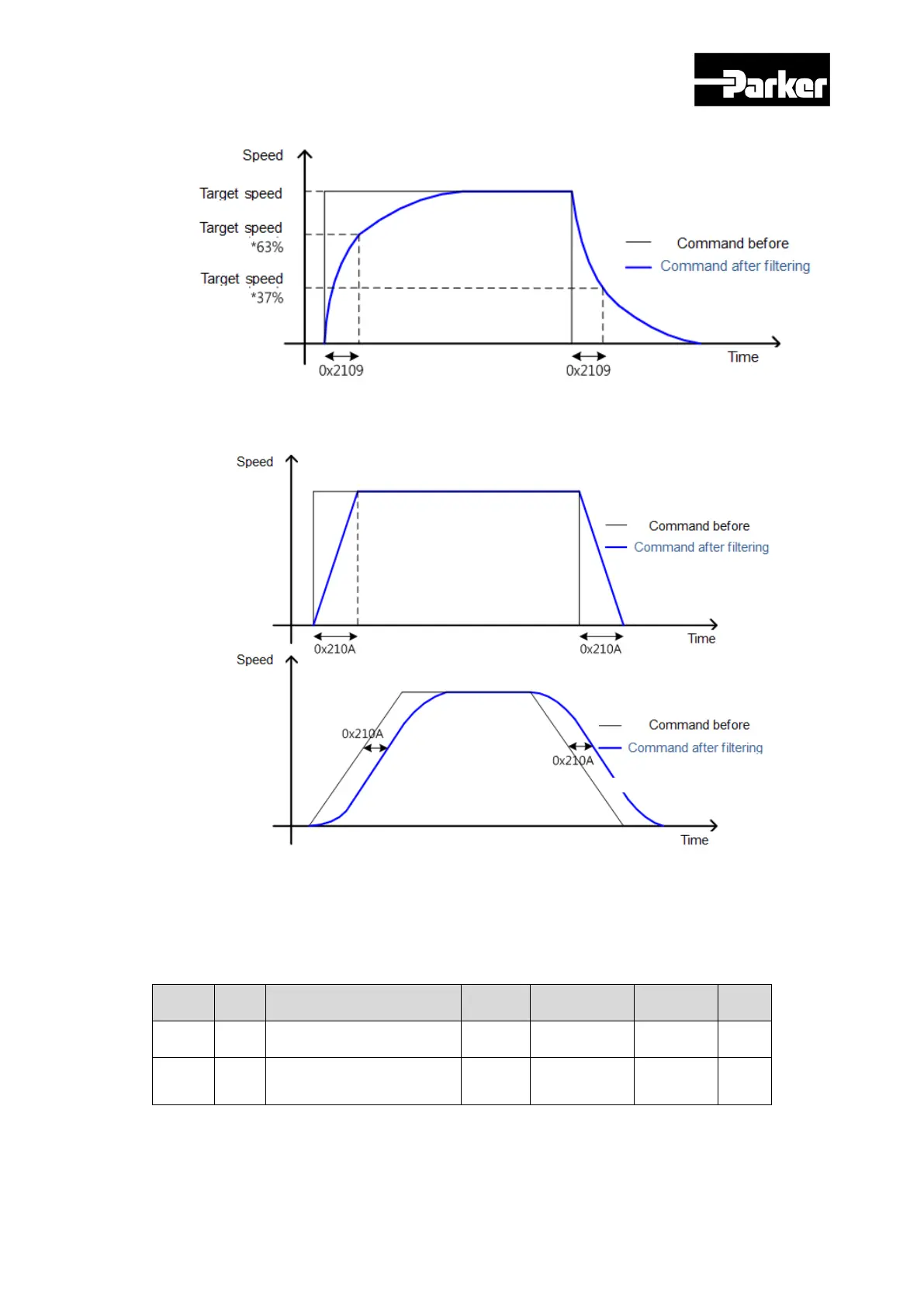

Position command filter using the position command filter time constant (0x2109).

Figure 45. Position Command Filter

Position command filter using position command average filter time constant (0x210A).

 Related Objects

Index

Sub

Index

Name

Variable

Format

Accessibility

PDO

Allocation

Unit

0x2109

Position Command Filter

Time Constant

UINT

Yes

0.1ms

0x210A

Position Command

Average Filter Time

Constant

UINT

Yes

0.1ms

Table 79. Position Command Filter Related Objects

Time
