Parker Hannifin
P series User Guide 56

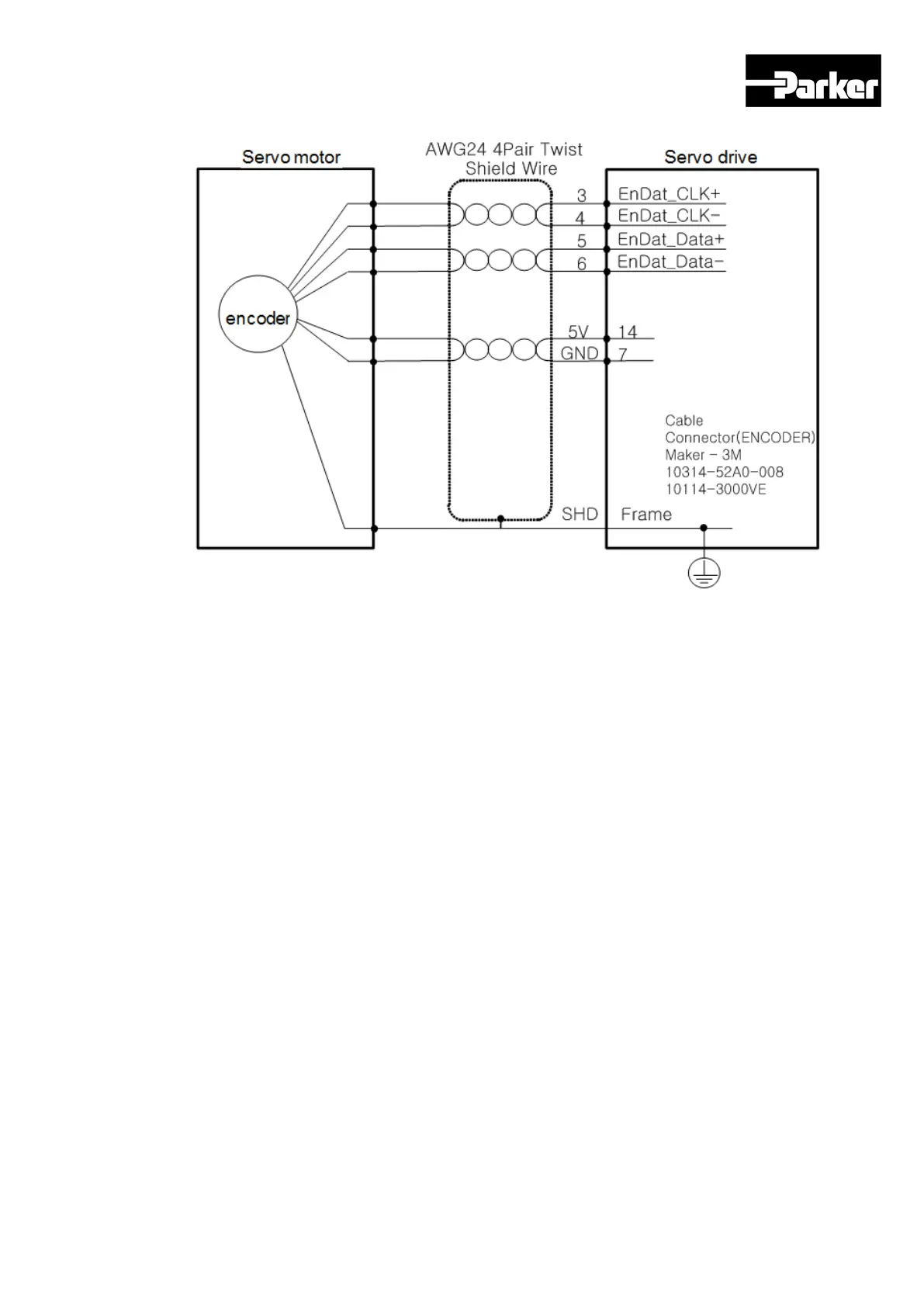

EnDAT2.2 Feedback
3.11.3 I/O Signal Wiring
Example of Digital Input Signal Wiring
Input contact point can be set at Contact Point A or B, depending on the characteristics
of each signal. Each input contact point can be allotted to 28 functions.
Please see 4.5 I/O Signals Setting for signal allotment and contact point change of
input contact points. The service rating is DC12V~ DC 24V.
