P series User Guide 177

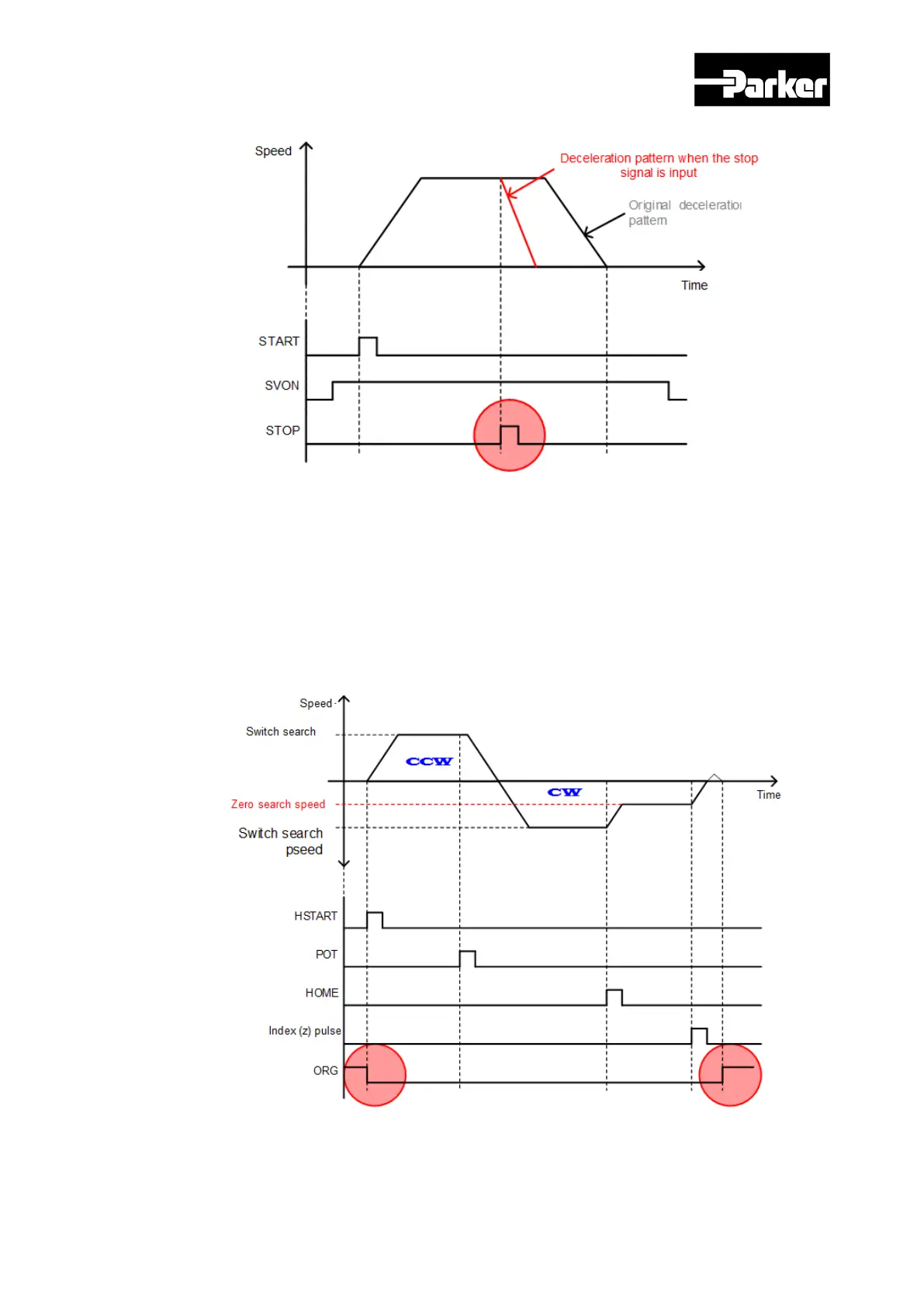

 HSTART, ORG
When the HSTART signal (Rising Edge) is input, the motor returns to the original
position start signal input during the return is disregarded.
After returning to the original position, the ORG (origin) signal is displayed. At the start
of the return to the origin, the ORG signal is rest to 0.
 JSTART / JDIR
