Parker Hannifin
P series User Guide 280
The drive functions as the USB host, which searches for any firmware files in the USB memory,
and download it into the flash memory in the drive. Using this function, you can conveniently
update the drive firmware using only the USB memory and OTG cable, without going through the
PC. The update procedure is as follows.

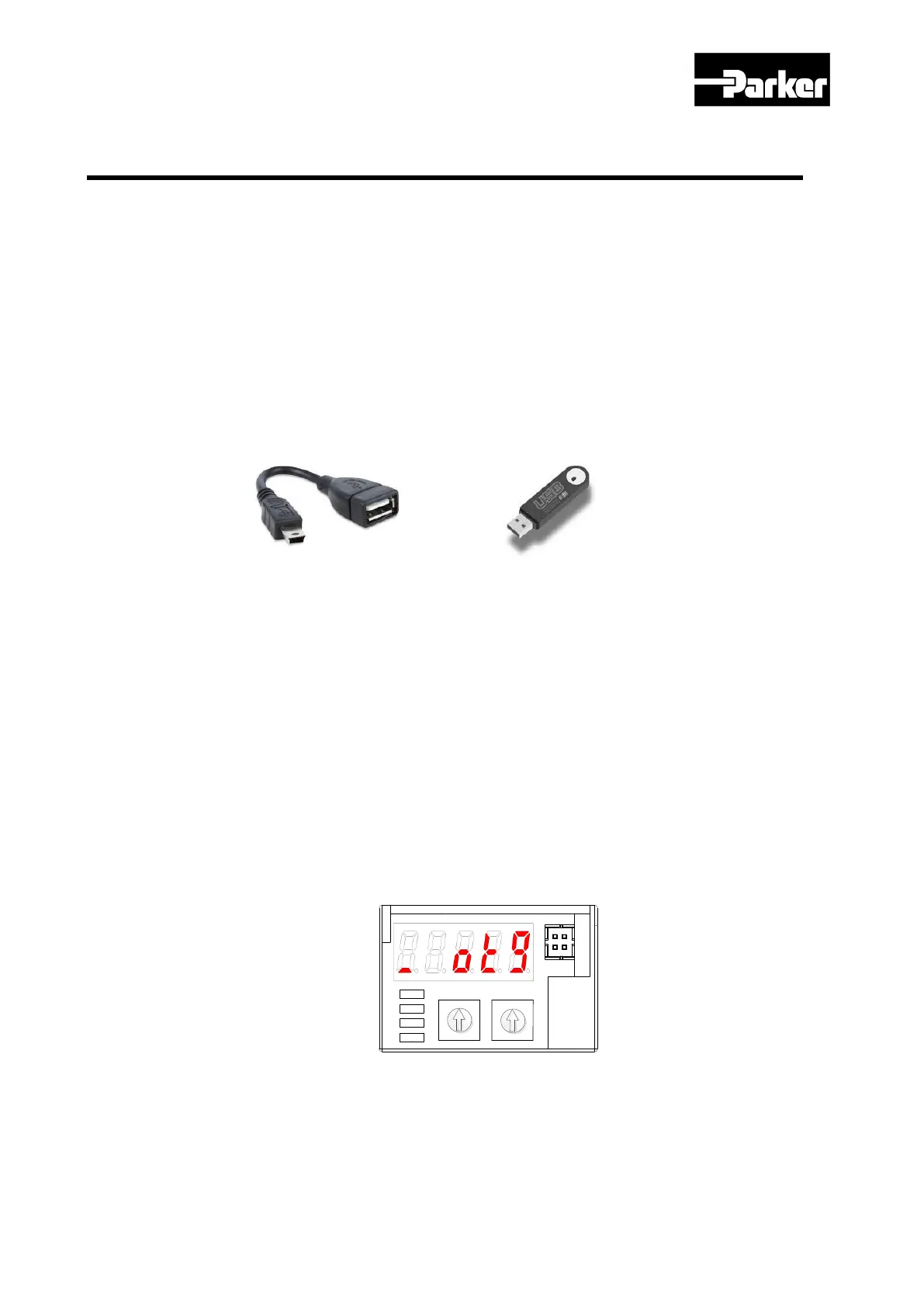

(1) Prepare a download Cable (USB OTG Cable) and USB memory.
Use USB OTG Cable consisting (USB Female Plug Type A, USB Mini B 5pin) as the
download cable.
(2) Copy the firmware file to update (PDFW__V.bin) into the USB memory
*Caution – the PD_FW.bin file should be put into the root directory of the USB
memory. And the file name, including the extension should match the name indicated
here.
(3) Connect the USB memory to the USB OTG Cable, connect the cable to the drive‘s USB
terminal, and turn on the drive.
(4) If the 7-segement for servo status displays ‗boot‘ and then ‗otg‘, this means the firmware
is being updated. When the ‗otg‘ display disappears, it means the firmware download is
complete, at which time you can remove the USB cable and the USB.
L/A 0
L/A 1
RUN
ERR
0
1
2
3
4
5
6
9
8
7
x10
2
3
4
5
6
9
8
7
x1
0
1
(7-Segment display for firmware update using OTG cable)
(5) Turn on the power again, and then check if the firmware update is applied.
