P series User Guide 283

Figure3-13.5

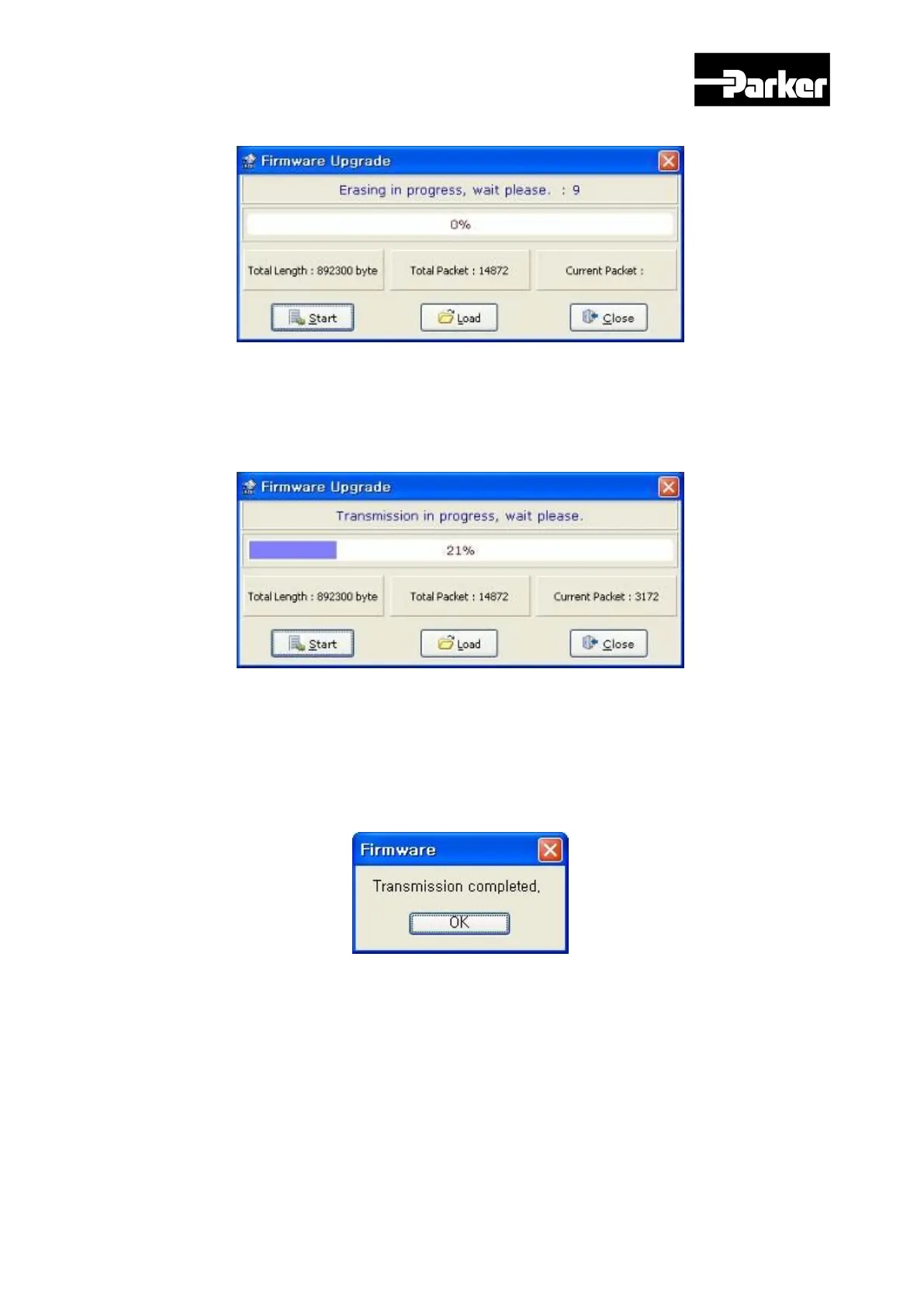

E. Click ‗Start‘ to begin transmission. The system down counts 10 seconds while

it clears the drive‘s internal memory.

F. The OS is automatically transmitted after the memory is cleared. You can see

the current progress through the progress bar and ‗current packet.‘ The

transmission time varies depending on the PC‘s performance, from tens of

seconds to a few minutes.)

G. ‗Transmission completed‘ window pops up when the transmission is properly

competed (after transmission, turn off and on the drive to reboot it.)

 When an error occurs during transmission
