Report Screen
ST80i Stress Test System Instructions for Use 4-7
Procedure Bar

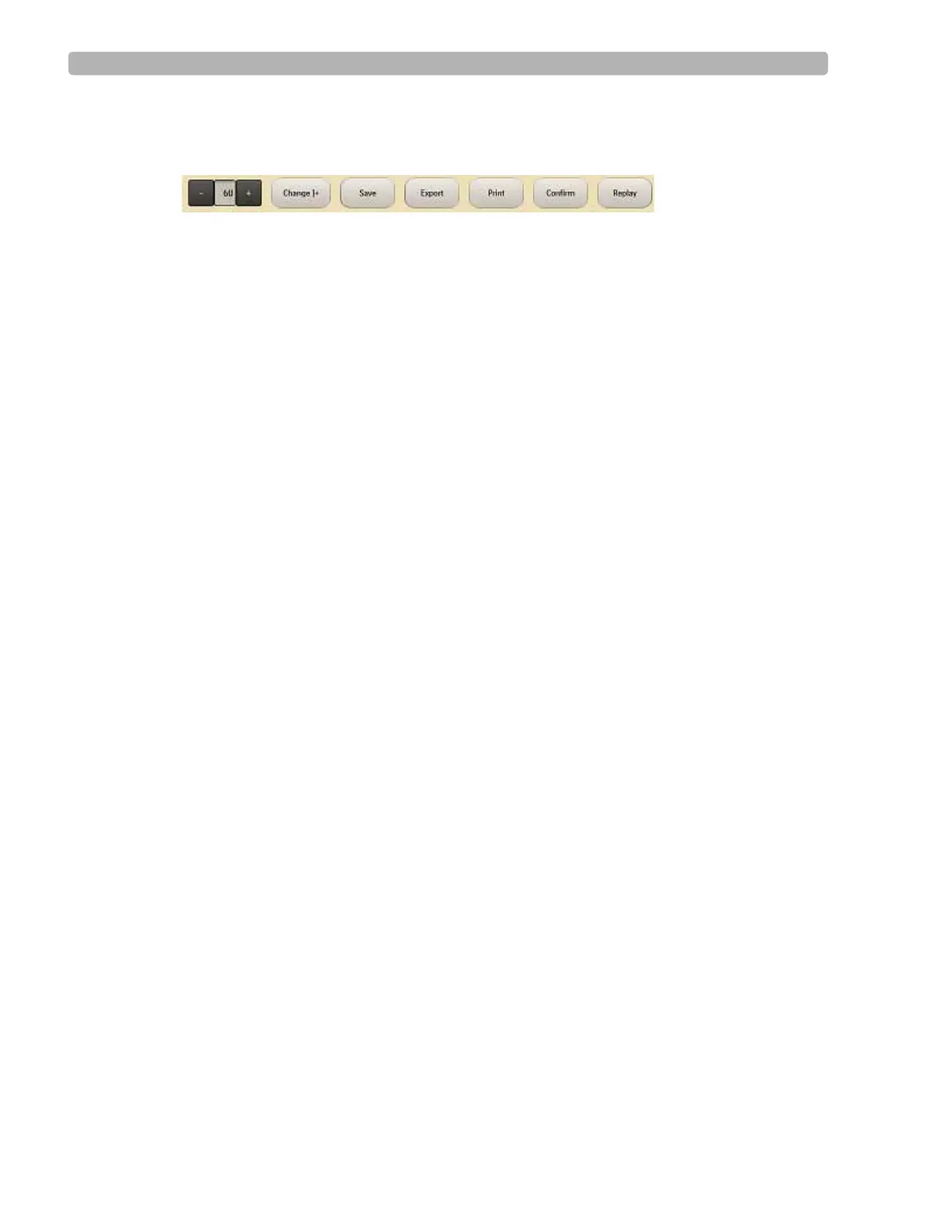

Figure 4-2 Procedure Bar
On the Procedure bar, you can:
 Adjust the J+ Point
 Save the report
 Export the report
 Print the report
 Confirm the report
 Replay the ECG
Change (J+) Point
The ST Measurement (J+) Point is preconfigured in the user profile.
[Settings  User Profile: Algorithm  J-ST (msec)]
You can adjust the J+ Point value on the Report screen to re-analyze the stress test using a
different measurement point. Once the J+ms value is modified, ST80i recalculates all related
values and updates the corresponding displays on the Report screen.
NOTE The new ST value does not automatically replace the old one until the report is saved.
To modify the ST measurement point
 On the Procedure bar, click the plus (+) or minus (-) to change the value in milliseconds
for
J-ST.
To recalculate all the ST values based on the new J+ setting
 Click the Change J+ button.
Save
Use this button to save the report to the stress system database after you have finished
updating and reviewing the report data.
When a Final Stress Report is saved, it may then be exported to the central server. The report
can be finalized and signed on both device side and server side. The stress study raw data will
be saved in the local stress study database. The export status and date/time of last export are
also maintained.
