Ellestad Protocol
ST80i Stress Test System Instructions for Use B-5
Ellestad Protocol
The Pre-Exercise and Recovery phase settings are the same as for the Bruce protocol. See
Figure X-1, above.

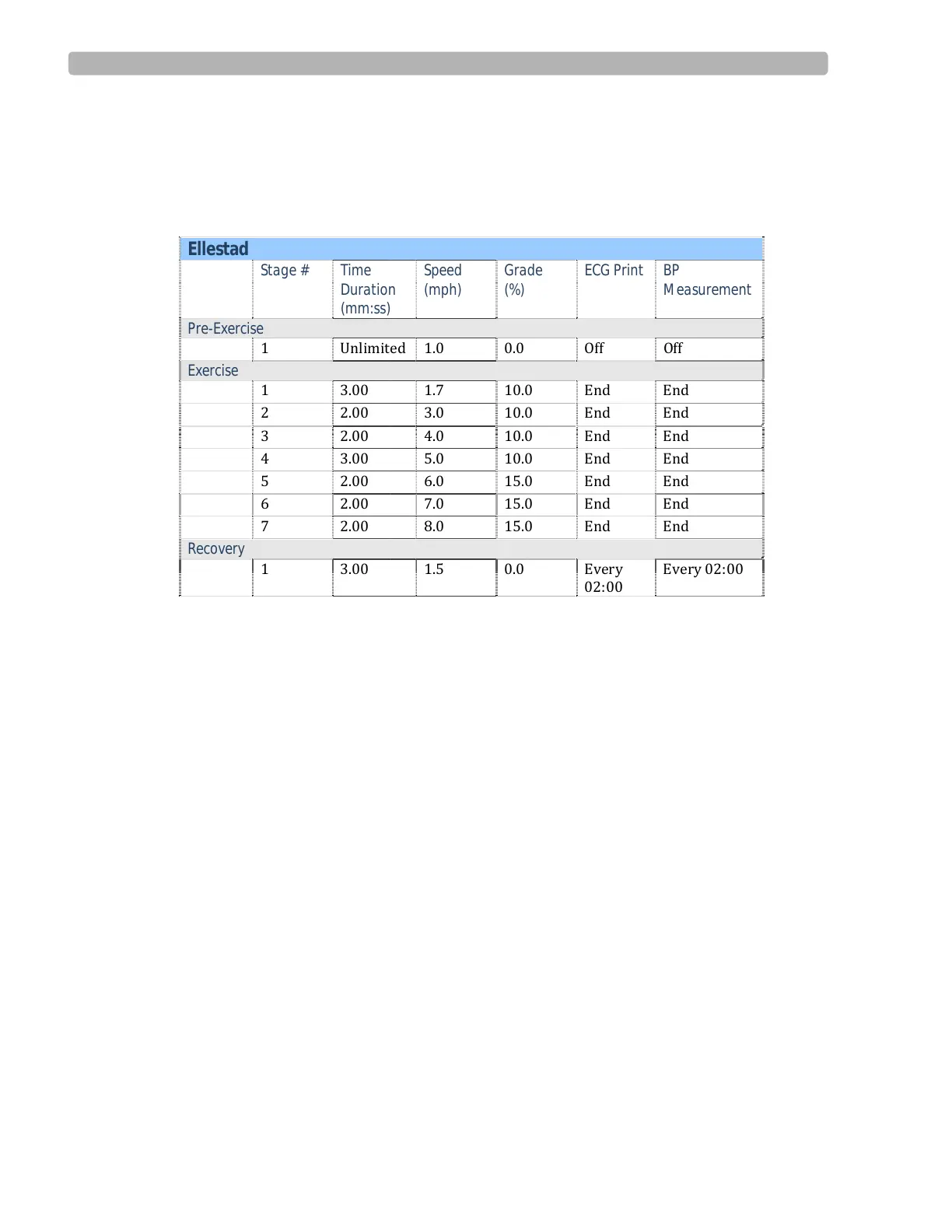

Table B-5 Ellestad Protocol Settings
Ellestad
Stage # Time
Duration
(mm:ss)
Speed
(mph)
Grade
(%)
ECG Print BP
Measurement
Pre-Exercise
1 Unlimited 1.0 0.0 Off Off
Exercise
1 3.00 1.7 10.0 End End
2 2.00 3.0 10.0 End End
3 2.00 4.0 10.0 End End
4 3.00 5.0 10.0 End End
5 2.00 6.0 15.0 End End
6 2.00 7.0 15.0 End End
7 2.00 8.0 15.0 End End
Recovery
1 3.00 1.5 0.0 Every
02:00
Every 02:00
