LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
System (A01)/Therapy (A04) PCB Assembly Replacement
Section Menu Section Contents Procedures Back Index
234
8
~ J106 (A22 biphasic PCB) - Disconnect the BTE cable from
the biphasic PCB (W20, 3011792-005).
NOTE: The 3011792 BTE to therapy PCB cable is used as
the replacement cable after the release of
LIFEPAK15 V2.

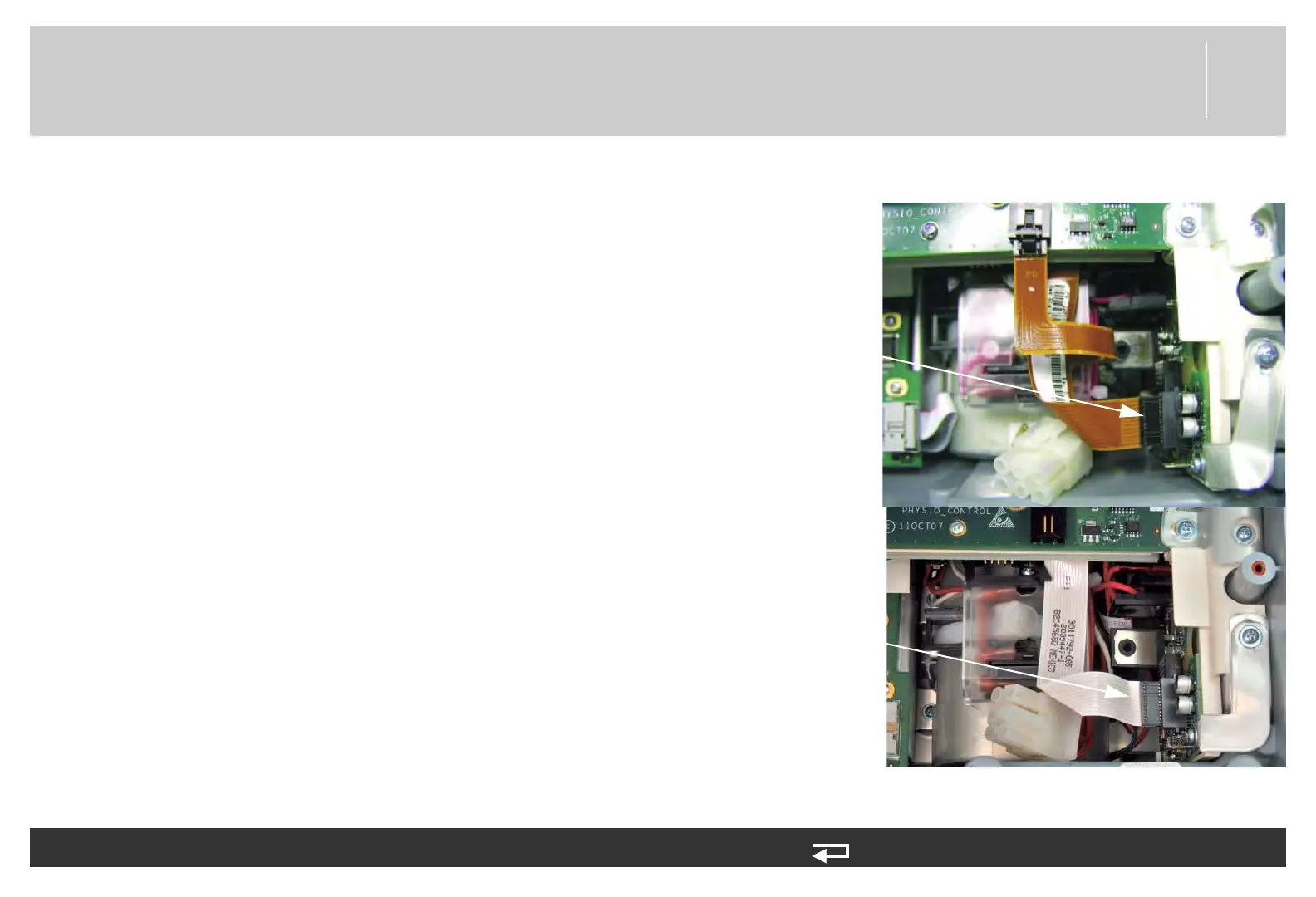

Figure 8.36—W20 biphasic cable
To remove the system/therapy PCBs as a single unit from the rear case: (Continued) 9 steps, (Page 2 of 6)
J106 biphasic to
therapy cable
connector
J106 biphasic to
therapy cable
connector
(3011792)
To Next Page
