LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
System (A01)/Therapy (A04) PCB Assembly Replacement
Section Menu Section Contents Procedures Back Index
237
8
7. Continue lifting the assembly. Disconnect the following connectors
on the therapy PCB in the following order:
~ J18 – Disconnect transfer relay assembly connector (A13,
3201583-001).
~ J19 – Disconnect energy storage capacitor connector (A15,
3008164-002).
~ J20 – Disconnect power/PCB therapy cable (W02,
3009726-05).

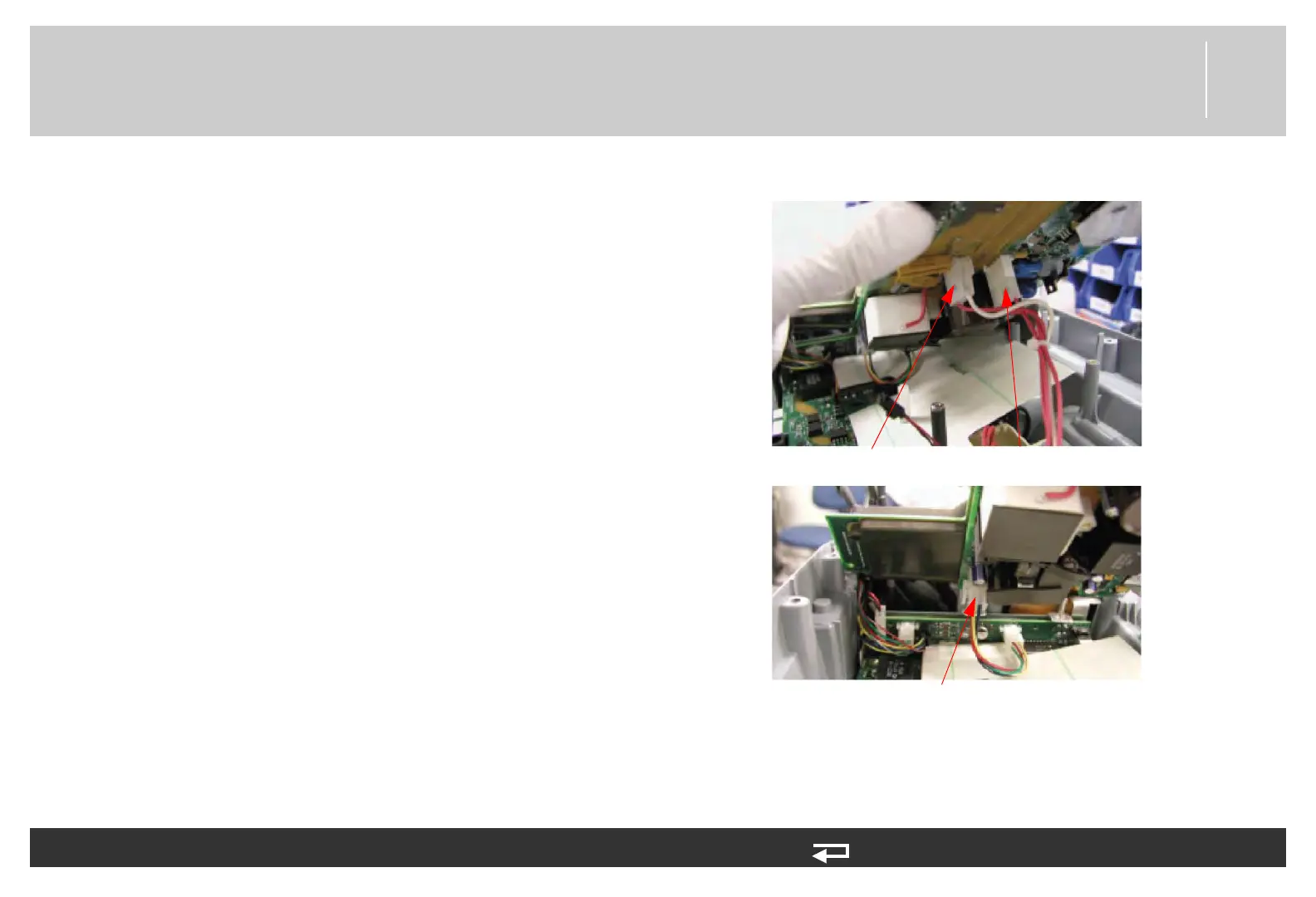

Figure 8.39—System/therapy PCB cable connections
To remove the system/therapy PCBs as a single unit from the rear case: (Continued) 9 steps, (Page 5 of 6)
J20 power/therapy
PCB cable
J18 transfer
relay
J19 transfer
relay
To Next Page
