LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Installing the System (A01)/Therapy (A04) PCB Assembly
Section Menu Section Contents Procedures Back Index
244
8
Separating the System PCB (A01)
 To separate the system PCB (A01) from the therapy PCB (A04): 6 steps, (Page 1 of 2)
1. Disassemble the case as
described in Disassembling the
Case (p. 181).
2. Remove the system/therapy
PCBs as a unit as described in
Removing the System (A01)/
Therapy (A04) PCB Assembly (p.
233).
3. If the BTE cable (W20) is the
three connector type, disconnect
the BTE cable at the P10
connector from the system PCB
assembly.
J10 BTE
cable
connector

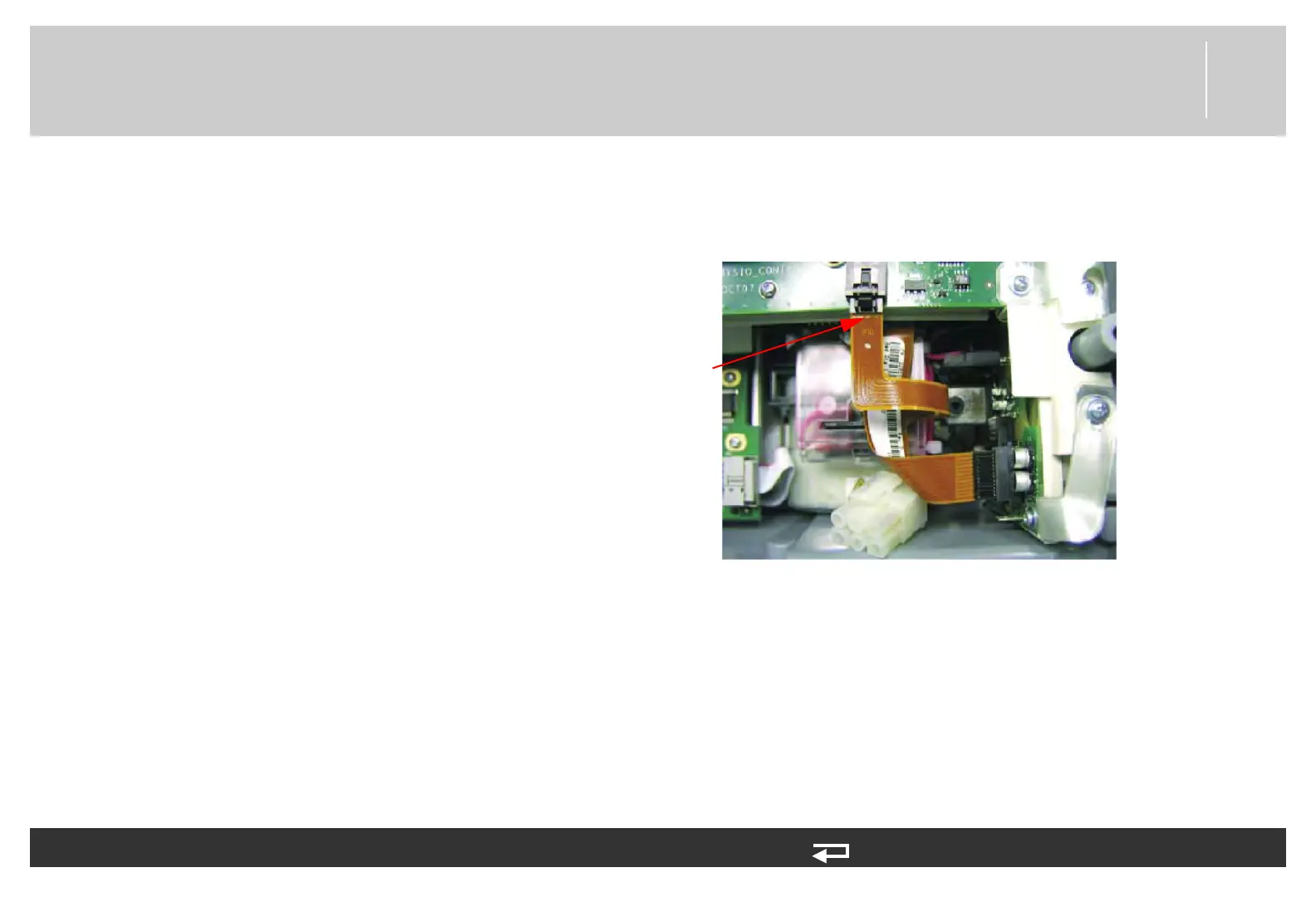

Figure 8.45—BTE cable connection (V1 cable, three
connector type)
