LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Installing the System (A01)/Therapy (A04) PCB Assembly
Section Menu Section Contents Procedures Back Index
247
8
Separating the Therapy PCB (A04)
 To remove the therapy PCB (A04): 9 steps, (Page 1 of 3)
1. Disassemble the case as
described in Disassembling the
Case (p. 181).
2. Remove the system/therapy
assembly as described in
Removing the System (A01)/
Therapy (A04) PCB Assembly (p.
233).
3. Disconnect the BTE cable (W20)
at the P51 connector from the
therapy PCB assembly.

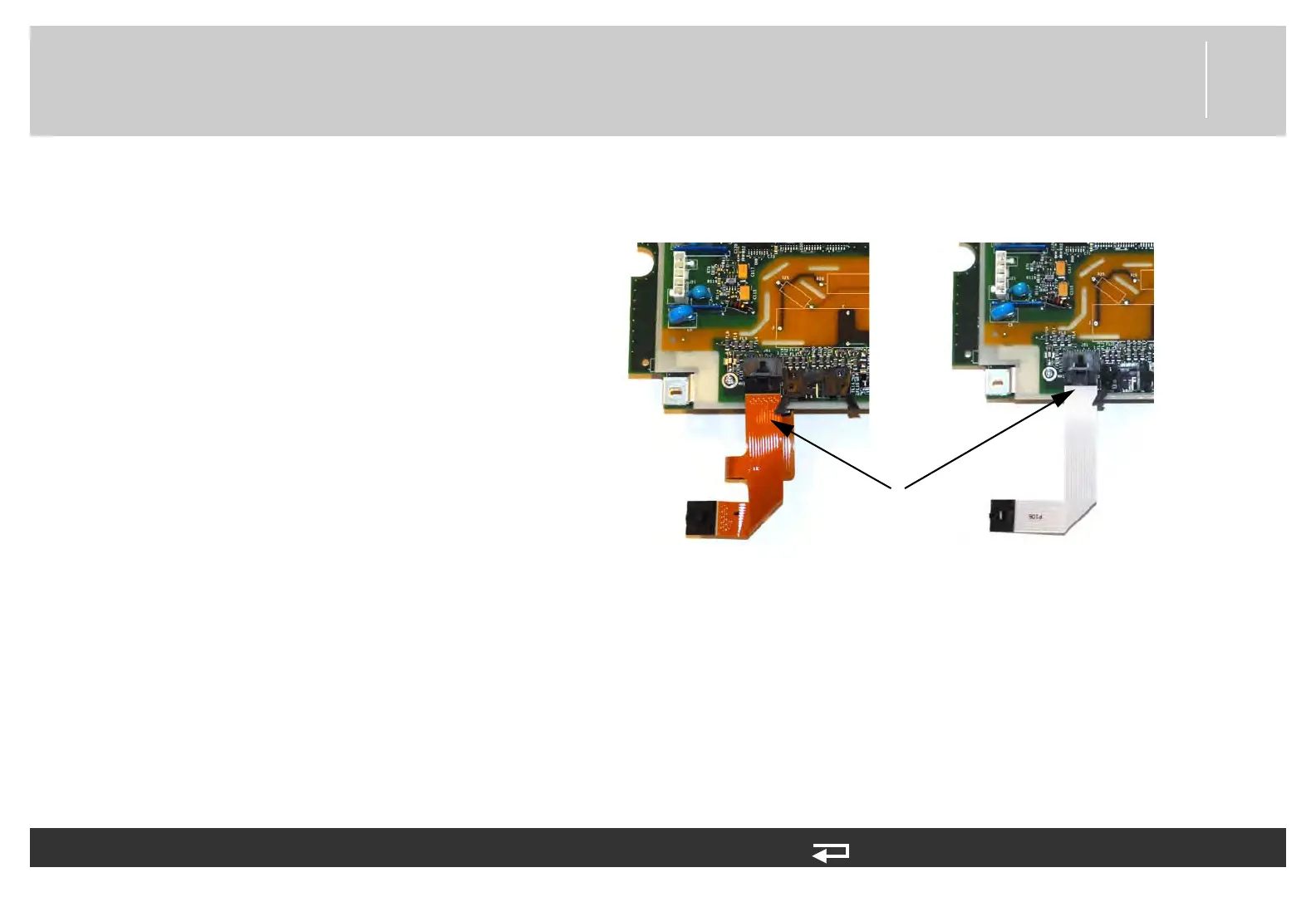

Figure 8.47—P51 therapy PCB connection
W20 BTE
cable J51
