LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
OEM PCB (A06) Replacement
Section Menu Section Contents Procedures Back Index
262
8
Removing the OEM PCB (A06)
Refer to Inside Rear Case Diagrams (p. 228).
To remove the OEM PCB (A06) from the rear case: 11 steps, (Page 1 of 3)
1. Disassemble the case as described in
Disassembling the Case (p. 181).
2. Remove the system/therapy PCB assembly as
described in System (A01)/Therapy (A04) PCB
Assembly Replacement (p. 232).
3. Disconnect Power/Therapy Cable (W02) (3009726-
05) from J8 on the power PCB.
4. Remove the OEM shield (3208298-000).
W02 - power/
therapy cable
OEM shield
W01 - power/
system cable

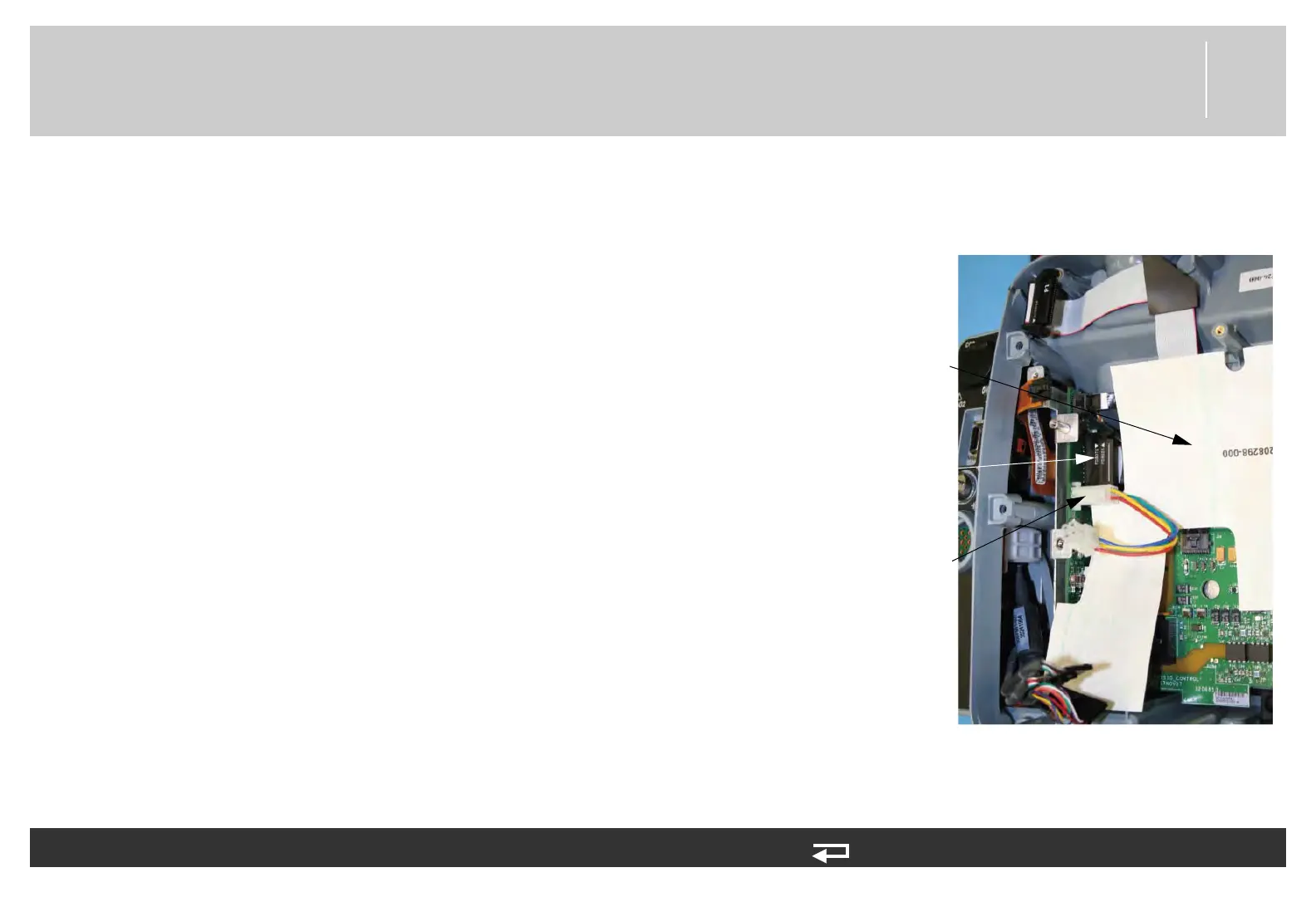

Figure 8.59—OEM PCB shield
To Next Page
