Physio Control LIFEPAK 15 - Page 261

LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
OEM PCB (A06) Replacement
Section Menu Section Contents Procedures Back Index
263
8
5. Remove the nylon standoff (3010569-02) from the
OEM PCB.
6. Disconnect the SpO2/OEM cable (W21) (3207000-
004) (if present).
7. Disconnect the CO2/OEM cable (W26) (3206998-
002) (if present).
8. Remove the NIBP connector retainer clip
(3010805-000) and disconnect the NIBP/OEM
cable (W27) (3012181-00) (if present).
 To remove the OEM PCB (A06) from the rear case: (Continued) 11 steps, (Page 2 of 3)

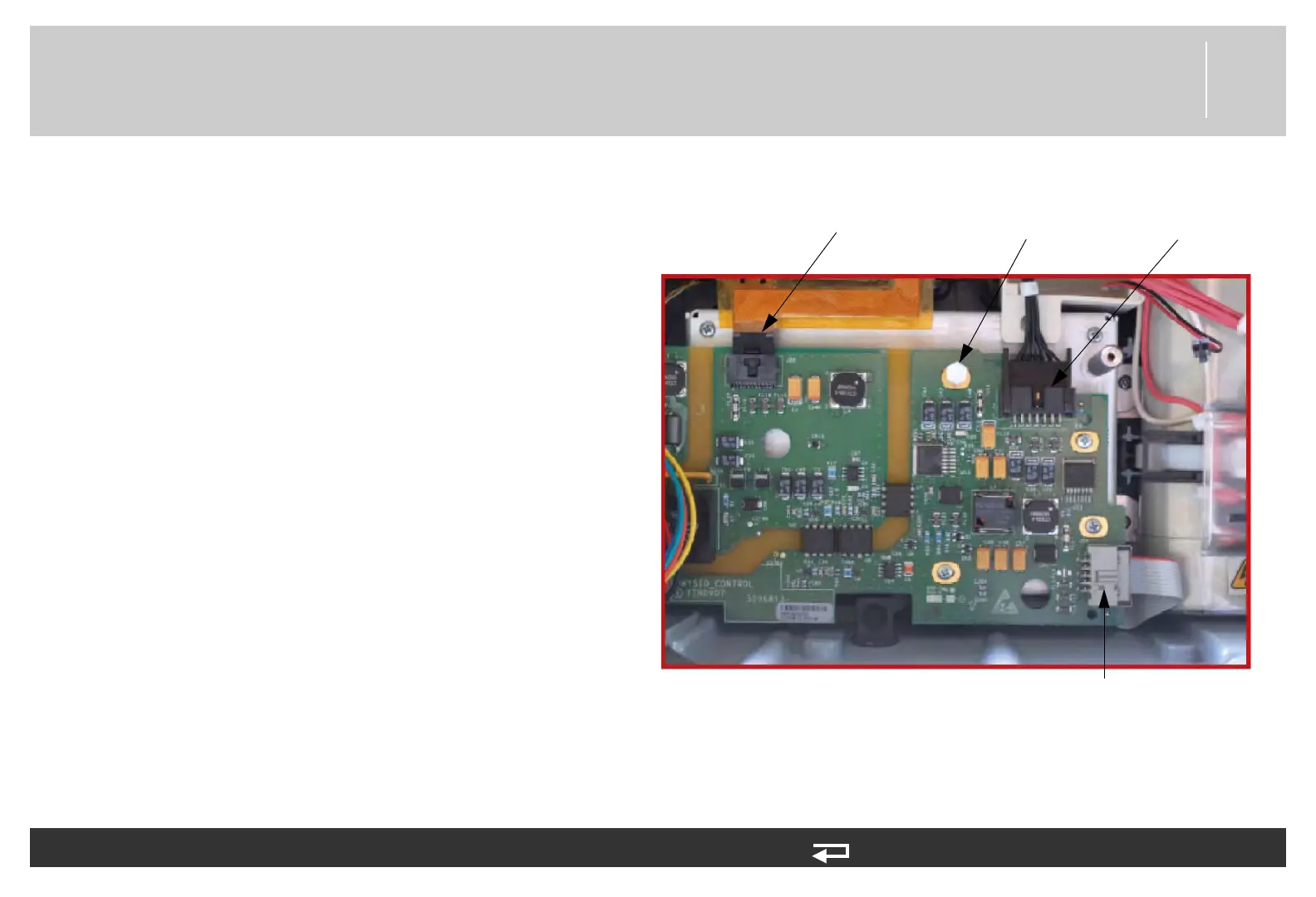

Nylon
standoff
W27 - NIBP /
OEM cable
W26 - CO2/
OEM cable
W21 - SpO2/
OEM cable
Figure 8.60—OEM PCB connections
