LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
SpO2 PCB (A16) Replacement
Section Menu Section Contents Procedures Back Index
276
8
7. Disconnect the SpO2/OEM cable (W21) (3207000-
004) from OEM PCB J26.
8. Carefully disconnect the SpO2 connector flex cable
(W22) (3206995-004) from J1 of SpO2 PCB.
CAUTION
POSSIBLE COMPONENT DAMAGE The SpO2 connector
flex cable can be damaged during disassembly. If SpO2
connector is damaged, replace the SpO2 flex cable using
the MASIMO Sp02 Panel Mount Cable Repair Kit (MIN
3305431-026) (p. 514).
To remove the SpO2 PCB from the rear case (see Figure 9.21 on p. 413): (Continued) 13 steps, (Page 2 of 5)
J1
connection

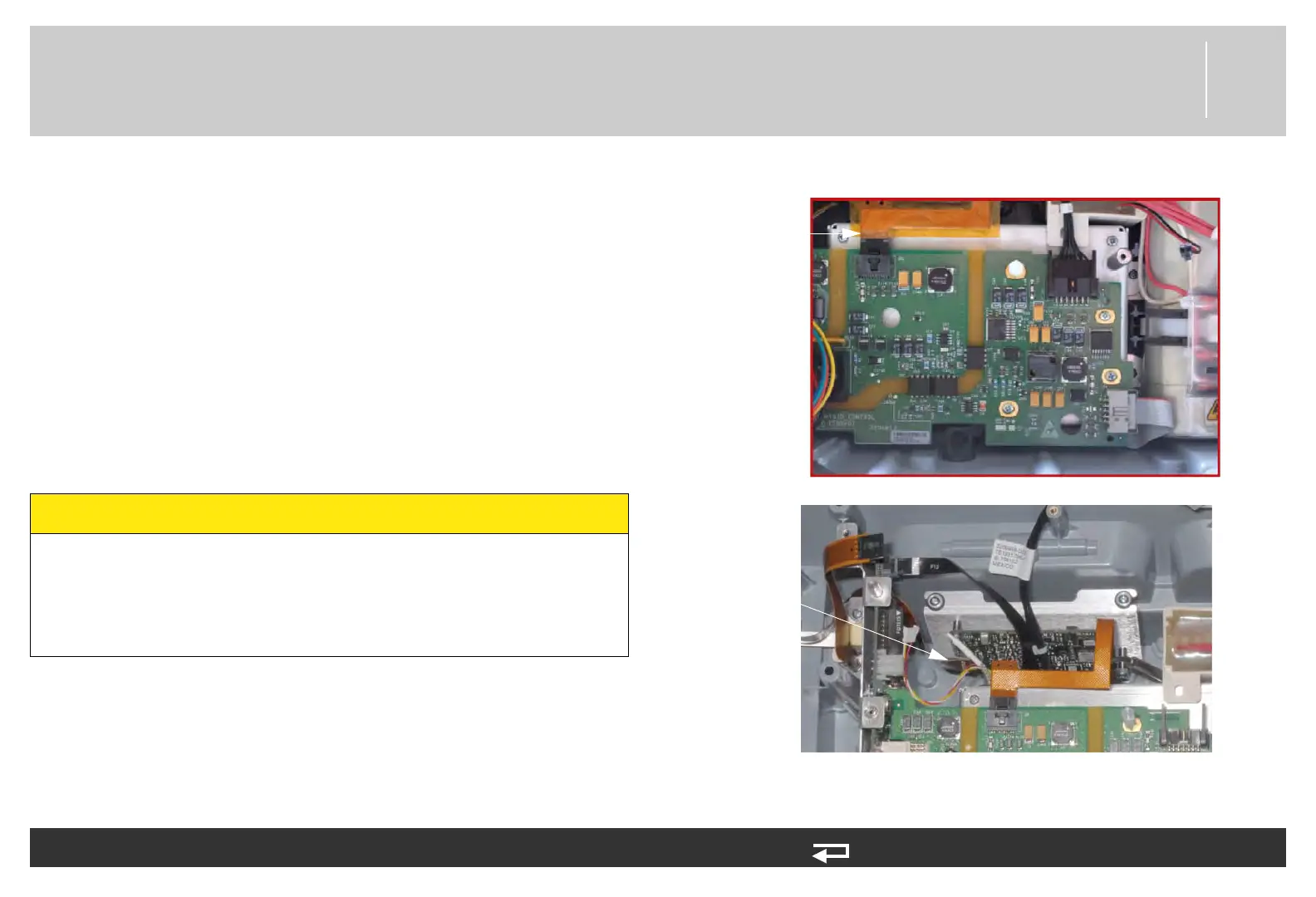

Figure 8.68—SpO2 PCB connections
