LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
SpO2 PCB (A16) Replacement
Section Menu Section Contents Procedures Back Index
277
8
9. Remove the two screws (202253-764) securing the
mounting bracket (3206962-001). Discard the
screws.
10. Lift the SpO2 assembly (3207034-002) out of the
rear case.
To remove the SpO2 PCB from the rear case (see Figure 9.21 on p. 413): (Continued) 13 steps, (Page 3 of 5)

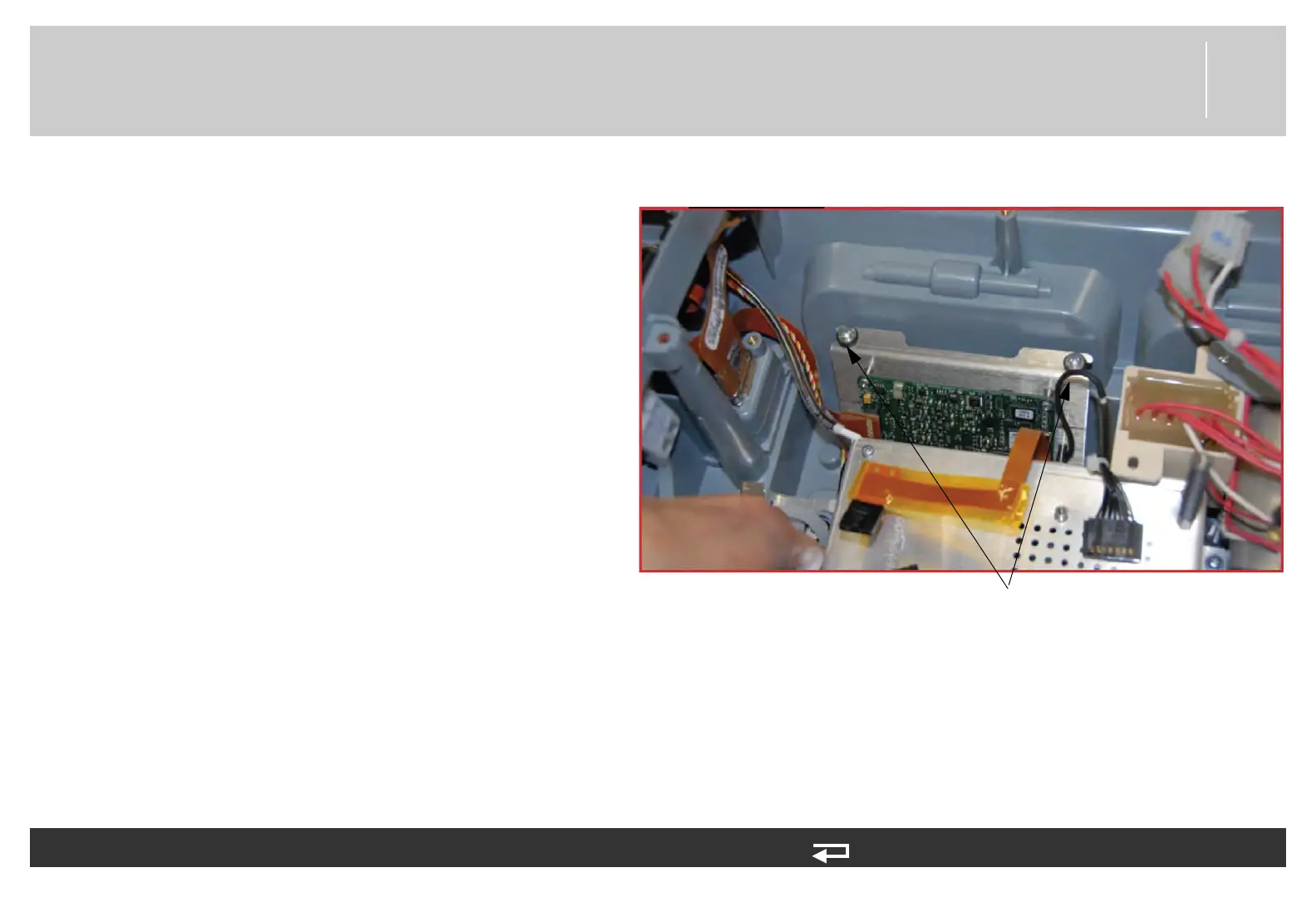

screw
locations
Figure 8.69—SpO2 mounting bracket
To Next Page
