LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
SpO2 PCB (A16) Replacement
Section Menu Section Contents Procedures Back Index
278
8
11. To remove the SpO2 flex cable, remove the one
screw (202253-760) attaching the SpO2/OEM flex
cable (W21) (3207000-004) from the SpO2
module. Discard the screw.
 To remove the SpO2 PCB from the rear case (see Figure 9.21 on p. 413): (Continued) 13 steps, (Page 4 of 5)

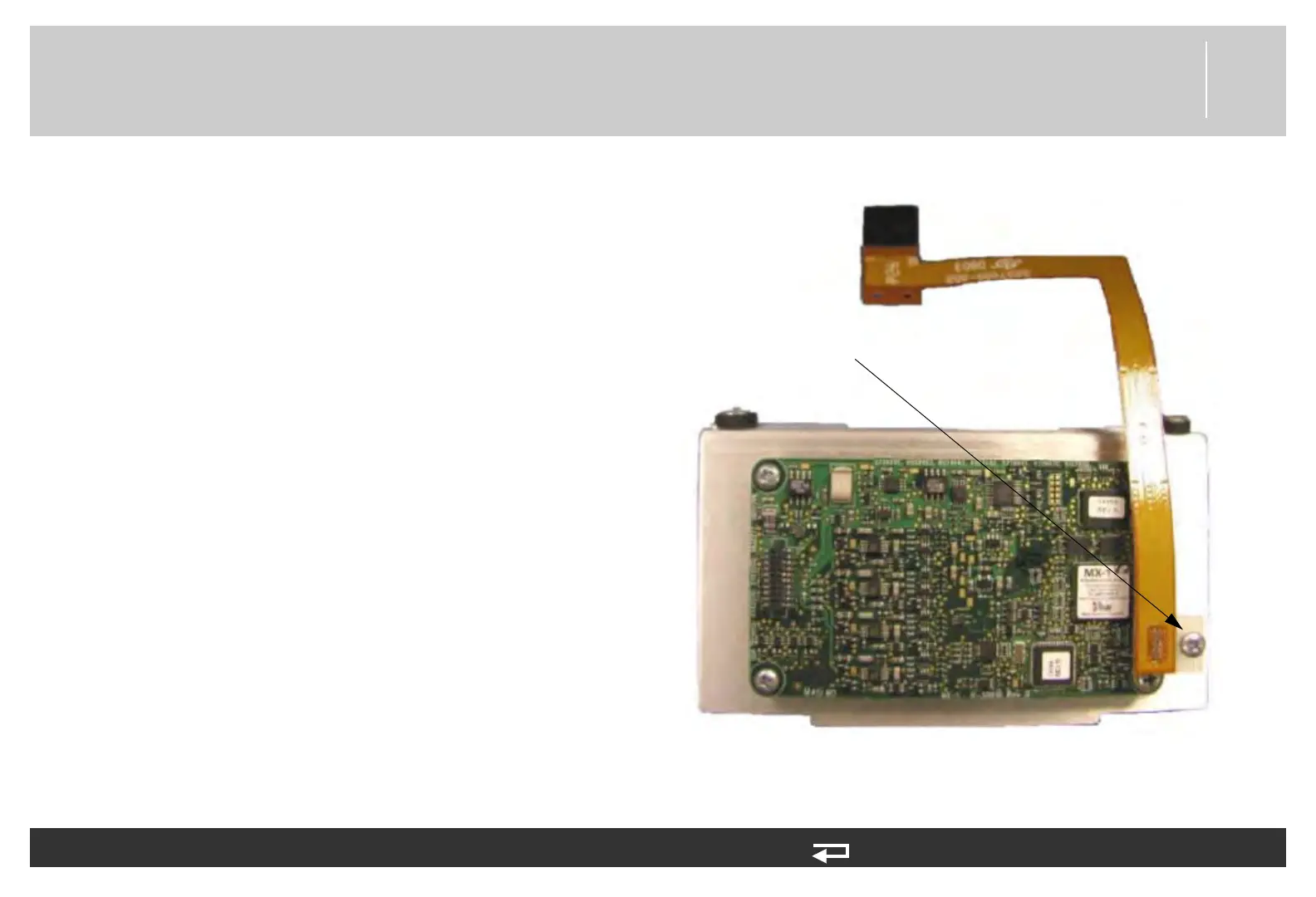

flex cable
screw
location
Figure 8.70—SpO2 flex cable screw
