LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
SpO2 PCB (A16) Replacement
Section Menu Section Contents Procedures Back Index
279
8
12. To remove the SpO2 module from the bracket,
remove the four screws (202253-760) that attach
the SpO2 module to the mounting bracket. Discard
the screws.
13. Lift the SpO2 module off of the mounting bracket.
To remove the SpO2 PCB from the rear case (see Figure 9.21 on p. 413): (Continued) 13 steps, (Page 5 of 5)

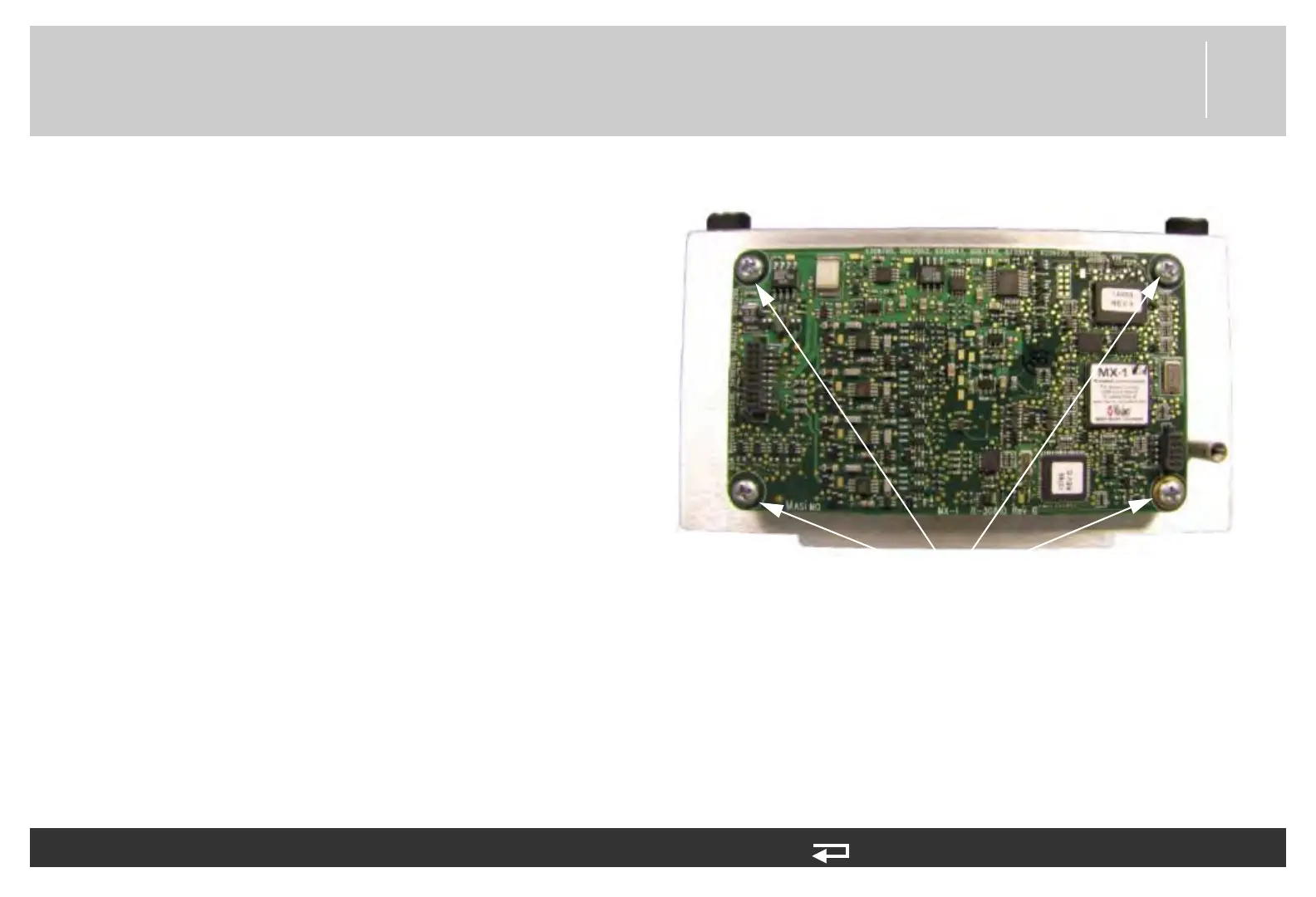

screw
locations
Figure 8.71—SpO2 PCB screw locations
