LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Biphasic Module (A22)/Inductive Resistor (A14) Replacement
Section Menu Section Contents Procedures Back Index
304
8
12. Install two cable ties to the right side of the interconnect bracket
(A17).

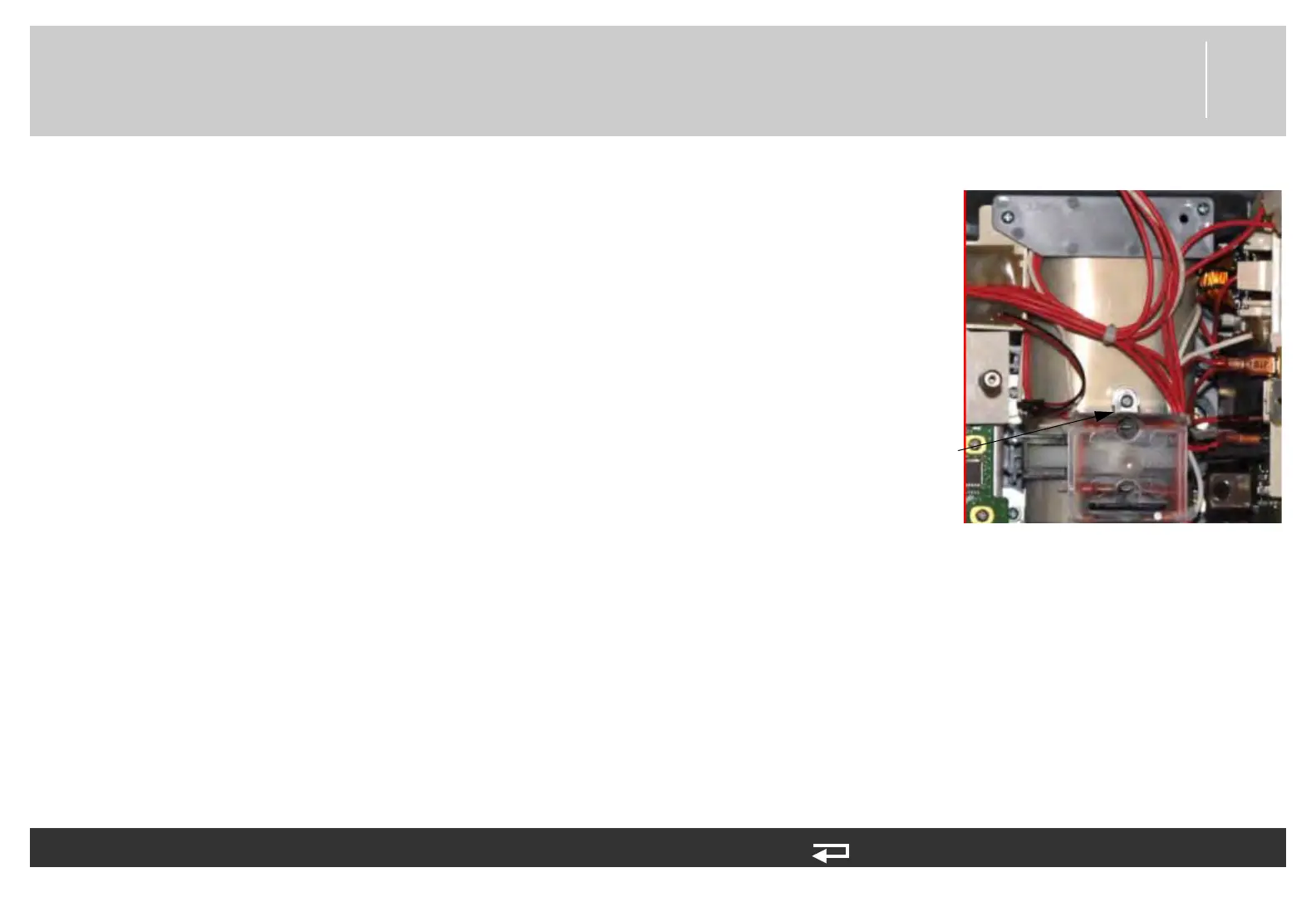

Figure 8.98—High voltage shield
13. Install one new screw (202253-761) securing the clear, plastic,
high-voltage shield (3010593-00) to the interconnect bracket (A17);
torque to 6.8 in-lb.
14. Replace the system/therapy PCB assembly as described in System
(A01)/Therapy (A04) PCB Assembly Replacement (p. 232).
15. Reassemble the case as described in Reassembling the Case (p.
184).
16. After device reassembly, complete the TCP – Defibrillator Energy
Calibration procedure. The defibrillator calibration constants may be
invalidated when you replace Defibrillator Energy delivery
components.
To install the biphasic PCB and inductive resistor: (Continued) 16 steps (Page 3 of 3)
