LIFEPAK 15 Monitor/Defibrillator
Service Manual
Replacement Procedures
Biphasic Module (A22)/Inductive Resistor (A14) Replacement
Section Menu Section Contents Procedures Back Index
303
8
8. Insert one new screw with washer (3207337-312) through the
ground strap (3012345-00) and install through the biphasic PCB
and bracket; torque to 6.8 in-lb.
9. Place the biphasic bracket into the rear case but do not completely
install. Leave the bracket up slightly for access to J104 connector.
Connect the red transfer relay lead spade connector to the biphasic
modular assembly at J104. Seat the biphasic bracket into the rear
case.
10. Route EMI shield tab over the biphasic PCB bracket. Route ground
strap over EMI shield tab.
11. Secure the biphasic PCB bracket into the rear case with two new
screws with washer (3207337-312); torque to 6.8 in-lb.

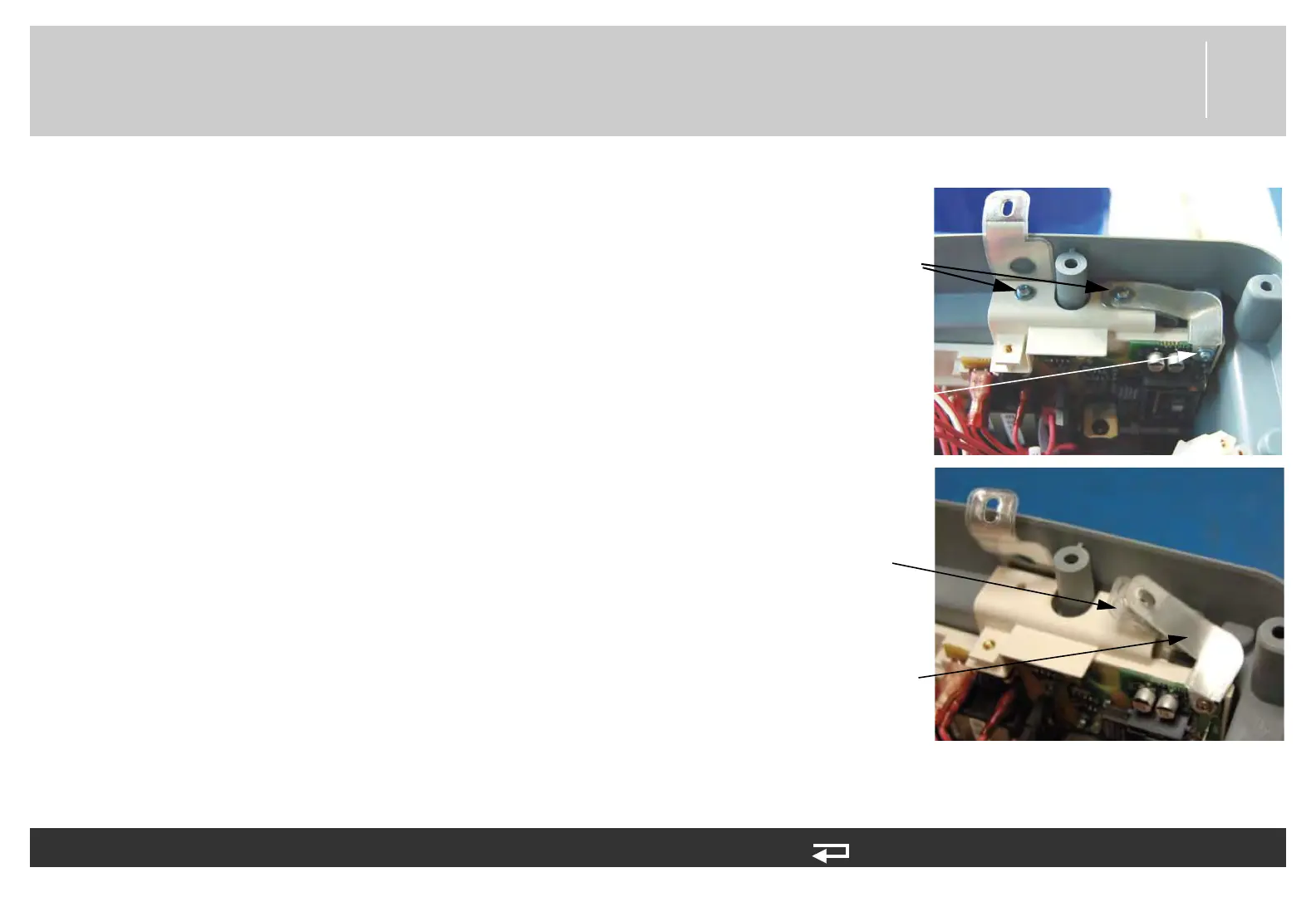

Figure 8.97—Biphasic bracket mounting
 To install the biphasic PCB and inductive resistor: (Continued) 16 steps (Page 2 of 3)
biphasic bracket,
mounting screws
with washers
(2 places)
ground strap,
screw with
washer
ground strap
EMI shield tab
