LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
External Parts Diagrams and Lists
Section Menu Section Contents
Back
Index
372
9
External and Configured Parts Diagram — Page 1 of 2

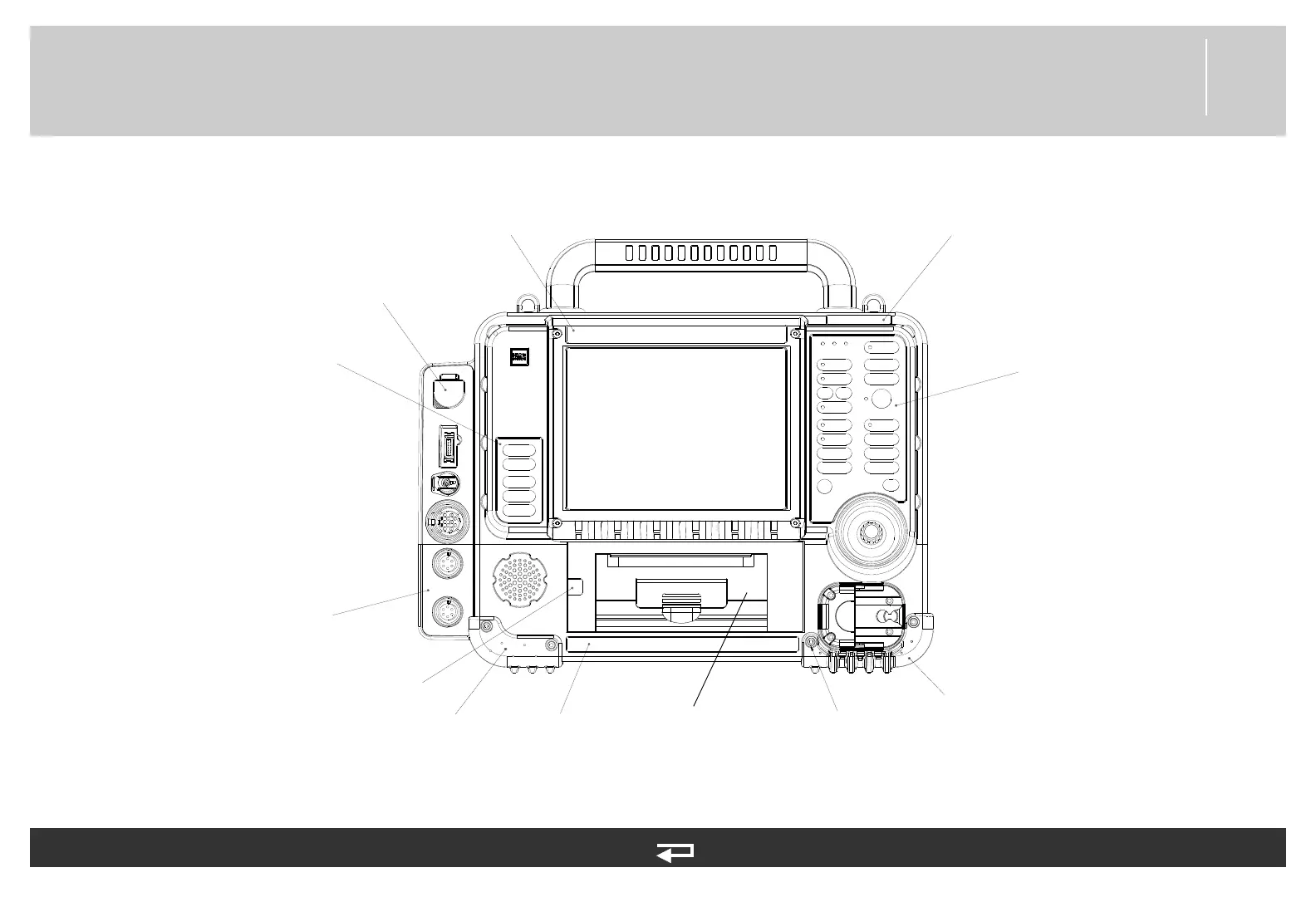

Figure 9.3—External parts view 1 of 2 (front)
3207318-XXX
LABEL 1
LABEL 6
3208290-000
3207079-XXX
3207307-001
3207361-375 (8X)
3207080-XXX
3012120-004
3206968-000
LABEL 4
LABEL 11
LABEL 19
