LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
External Parts Diagrams and Lists
Section Menu Section Contents
Back
Index
373
9
External and Configured Parts Diagram — Page 2 of 2

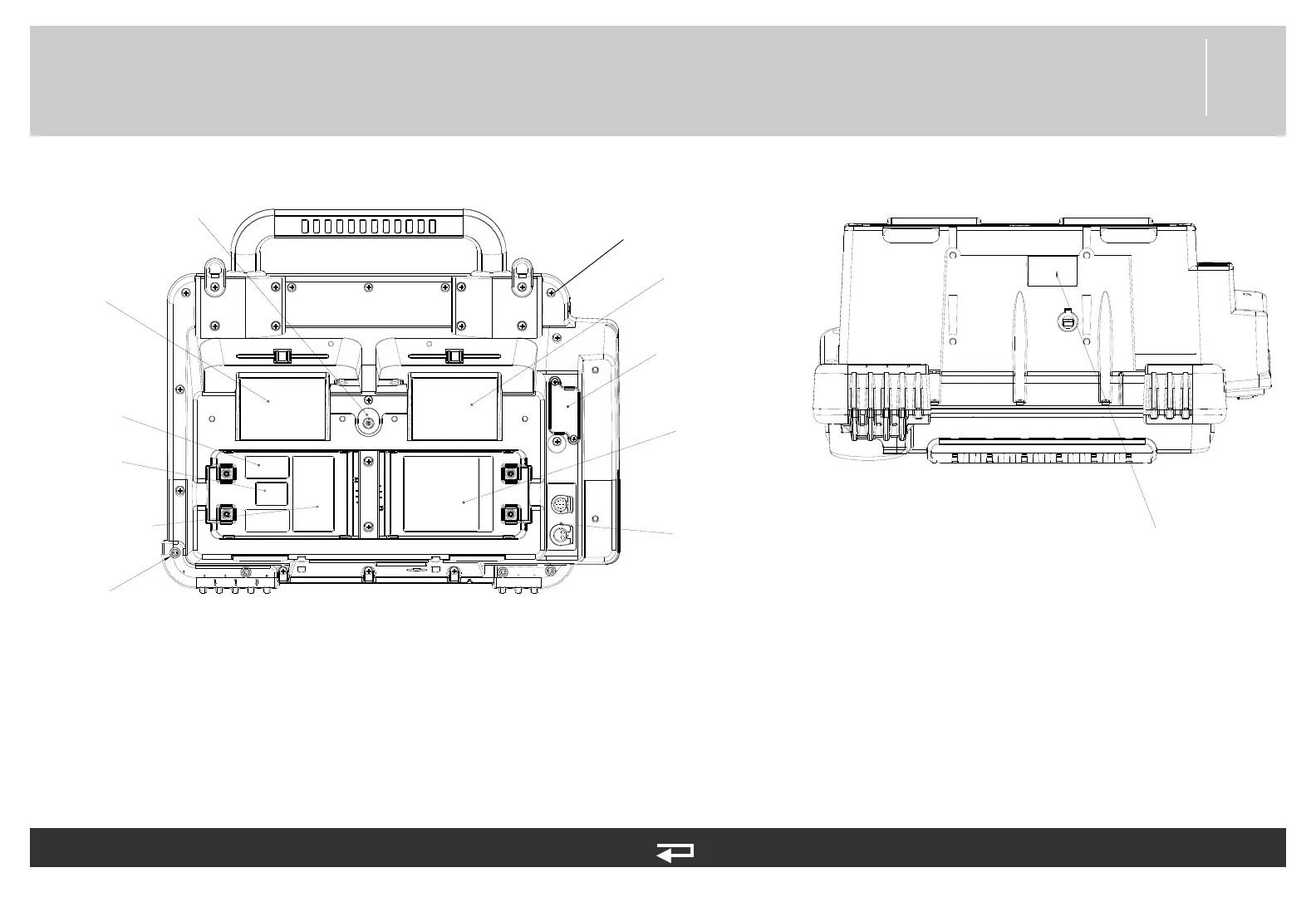

Figure 9.4—External parts view 2 of 2 (rear)
3207318-XXX
3206959-001
3207359-000
3207361-375
3207318-XXX
LABEL 7
LABEL 12
LABEL 9
LABEL 2
LABEL 3
LABEL 9
201407-069 (14X)
LABEL 5
