LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
483
9
OEM PCB/SpO2 Module Cable

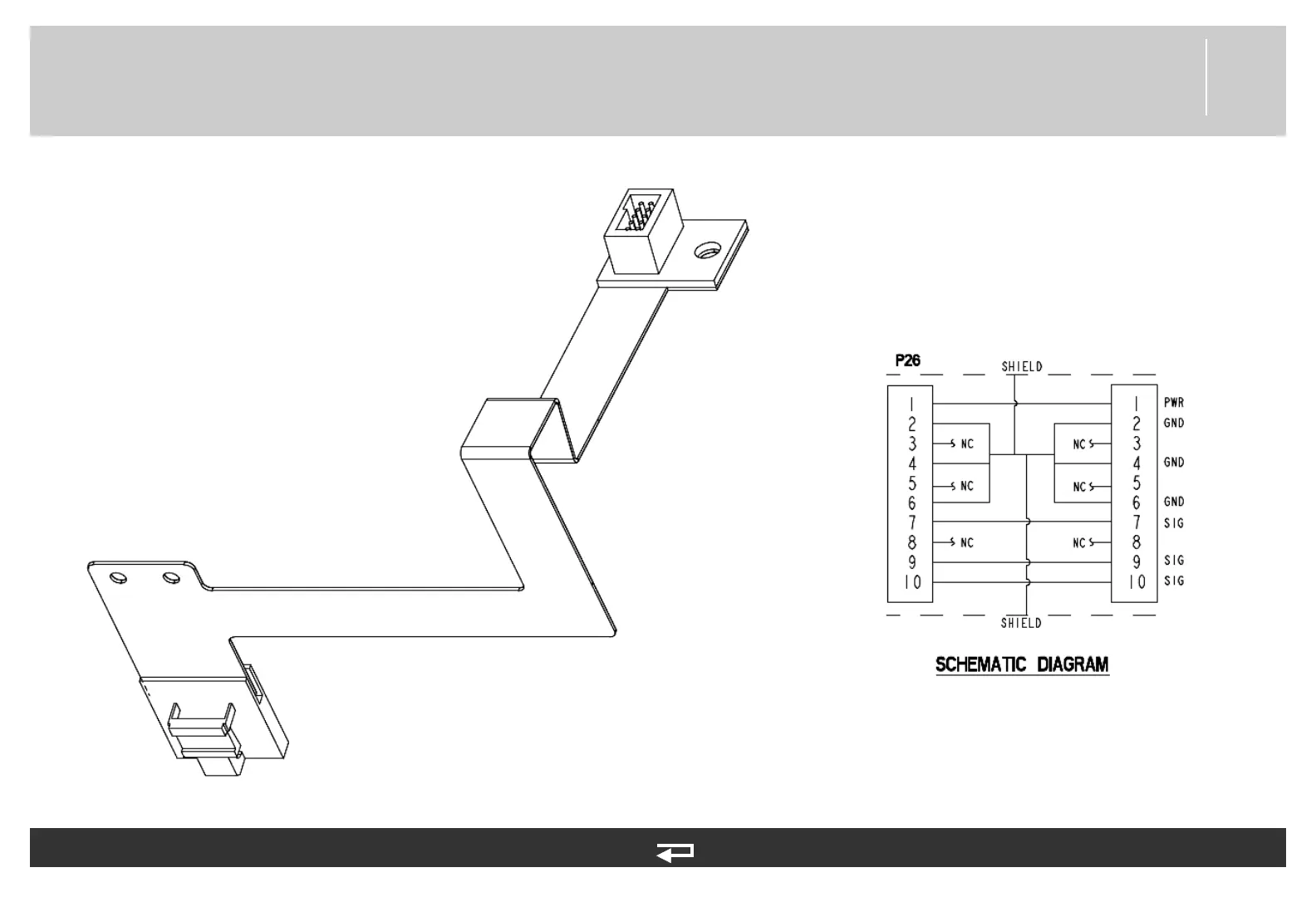

Figure 9.61—Diagram for item W21
SpO2 Module (p. 458)
OEM PCB Module
(p. 448)
Refer to Figure 9.21: NIPB, CO2, and Sp02 view 1 of 1,
p. 413.
See MIN 3207000-004 in table for parts information.
P26
P3
