LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
484
9

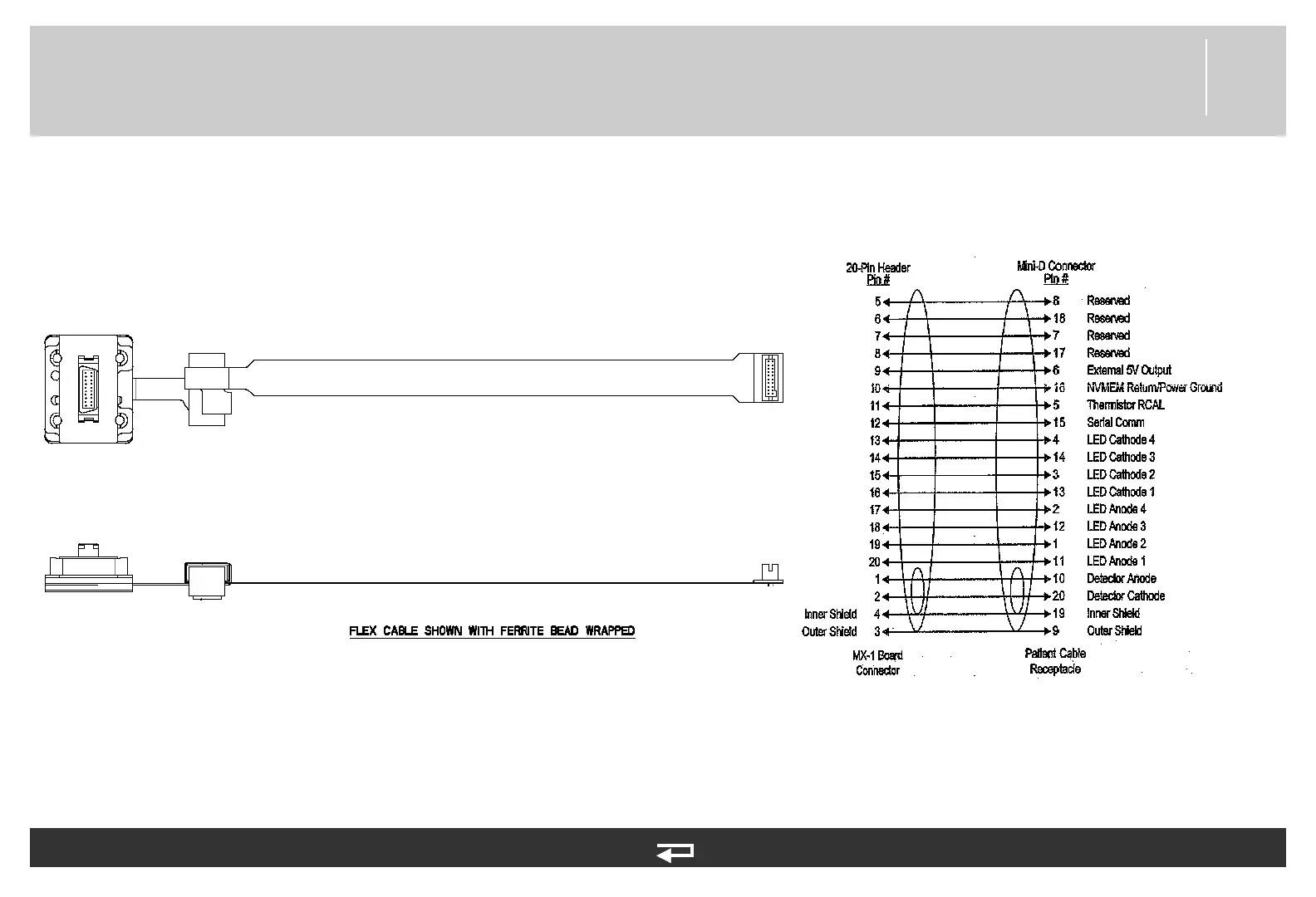

SpO2 Connector Cable
Figure 9.62—Diagram for item W22
SpO2 Module (p. 458)
P1
Refer to Parameter Bezel Diagrams and Parts List (p. 392) and NIPB,
CO2, and Sp02 view 1 of 1 (p. 413)
See MIN 3207000-004 in table for parts information.
To Next Page
