LIFEPAK 15 Monitor/Defibrillator
Service Manual
Assembly Diagrams and Parts Lists
Connection Diagrams for Assemblies, Control Boards, Cables, and
Connectors
Section Menu Section Contents
Back
Index
485
9
OEM PCB/CO2 Module Cable

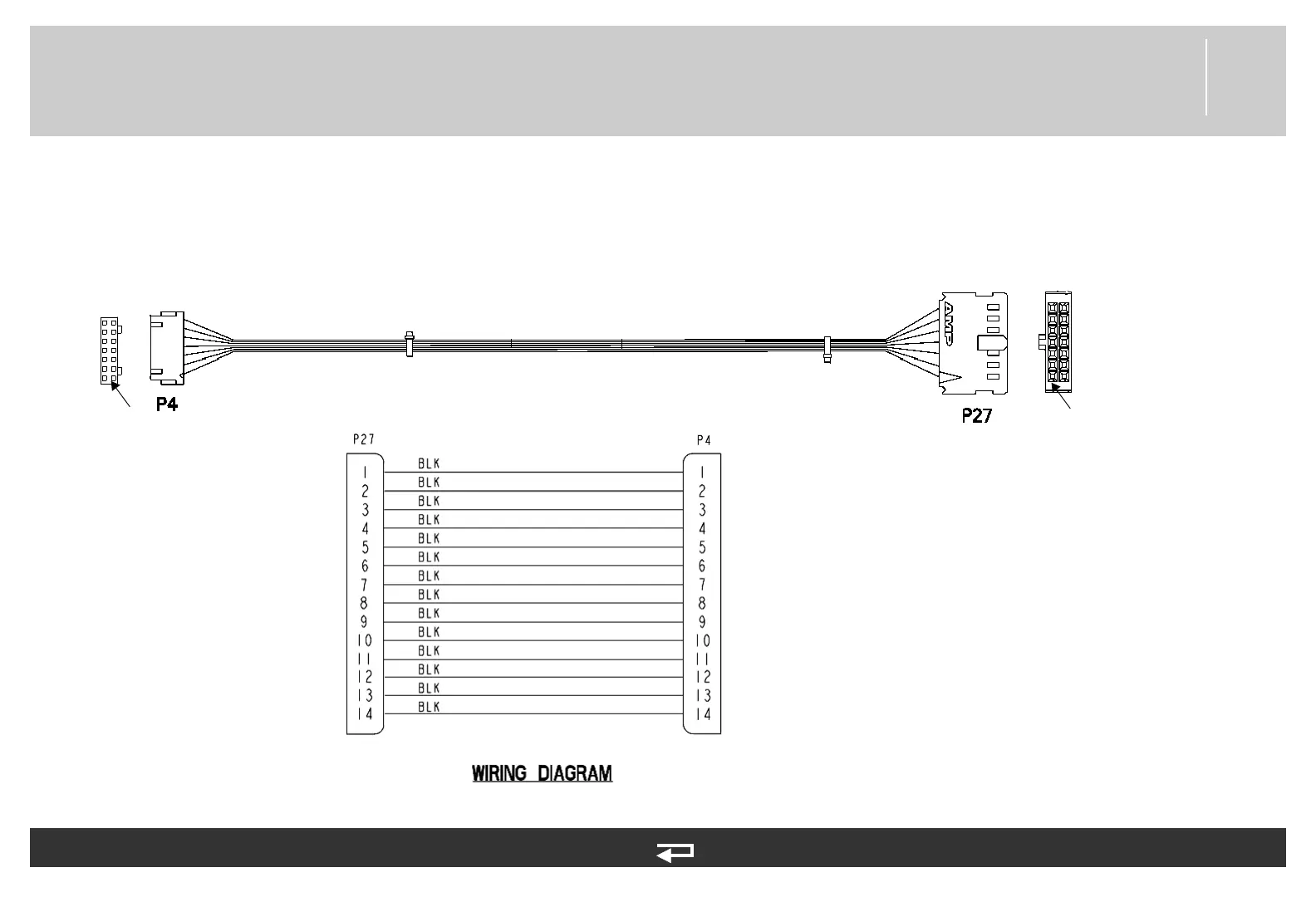

Figure 9.63—Diagram for item W26
CO2 Module (p. 462)
Pin 1
Pin 1
OEM PCB Module (p. 448)
Refer to NIPB, CO2, and Sp02 (p. 413).
See MIN 3206998-002 in table for part information.
To Next Page
