User’s Manual of WGSD-10020 Series

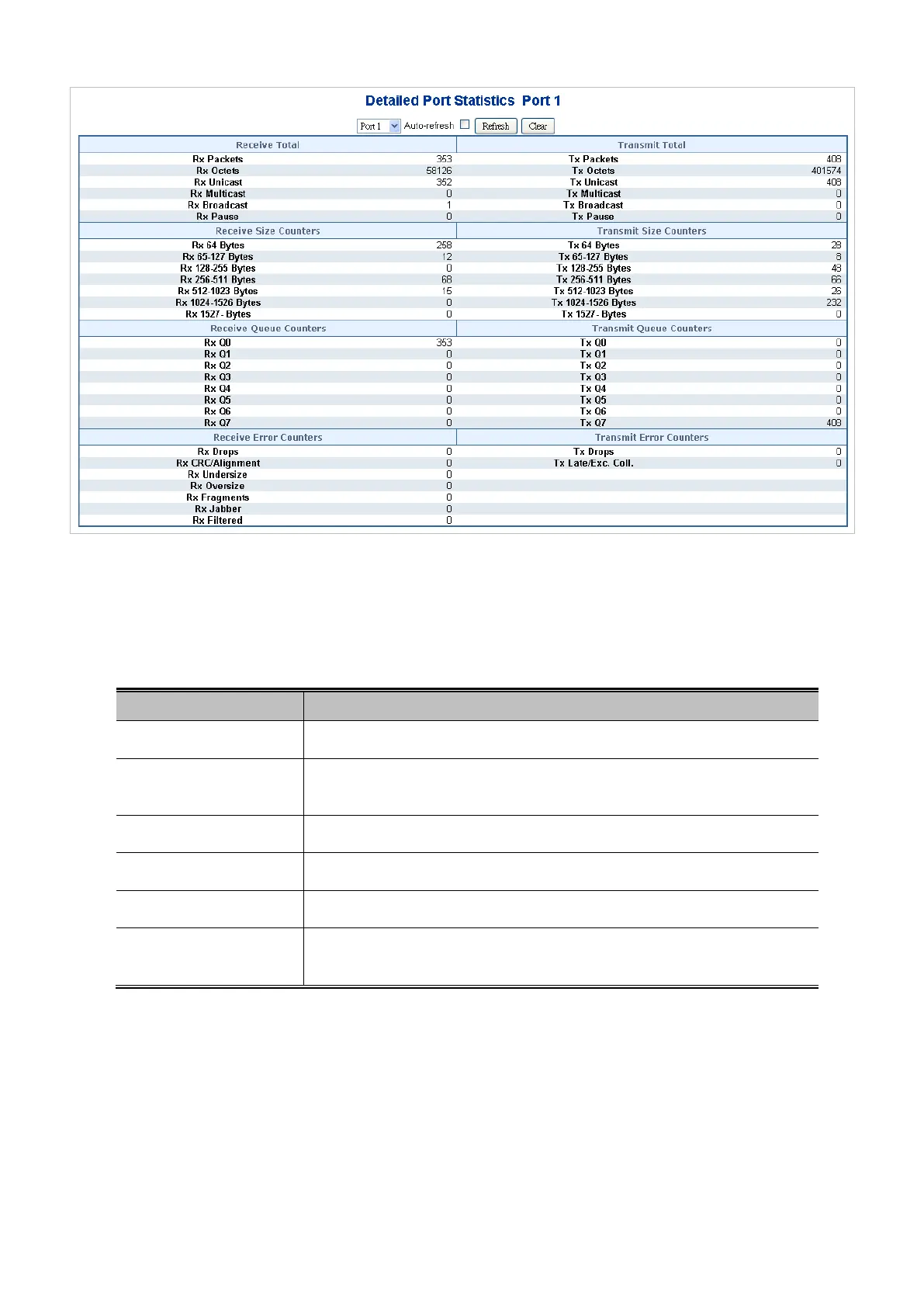

Figure 4-4-4 Detailed Port Statistics Port 1 page screenshot
The page includes the following fields:
Receive Total and Transmit Total
Object Description
• Rx and Tx Packets
The number of received and transmitted (good and bad) packets
• Rx and Tx Octets
The number of received and transmitted (good and bad) bytes. Includes FCS, but
excludes framing bits.
• Rx and Tx Unicast
The number of received and transmitted (good and bad) unicast packets.
• Rx and Tx Multicast
The number of received and transmitted (good and bad) multicast packets.
• Rx and Tx Broadcast
The number of received and transmitted (good and bad) broadcast packets.
• Rx and Tx Pause
A count of the MAC Control frames received or transmitted on this port that have
an opcode indicating a PAUSE operation.
Receive and Transmit Size Counters
The number of received and transmitted (good and bad) packets split into categories based on their respective frame
sizes.
Receive and Transmit Queue Counters
